JDZX10 Series 3kV 6kV 10kV Dry Type Single-phase Voltage Transformer

Model: JDZX10-3, 6, 10

Description

JDZX10-3, 6, 10 series voltage transformers are suitable for converting high voltage into low voltage and large current into small current in 3kV, 6kV, and 10kV power systems for measurement or protection systems. In order to realize the standardization and miniaturization of measuring instruments, protection equipment and automatic control equipment.
  • General

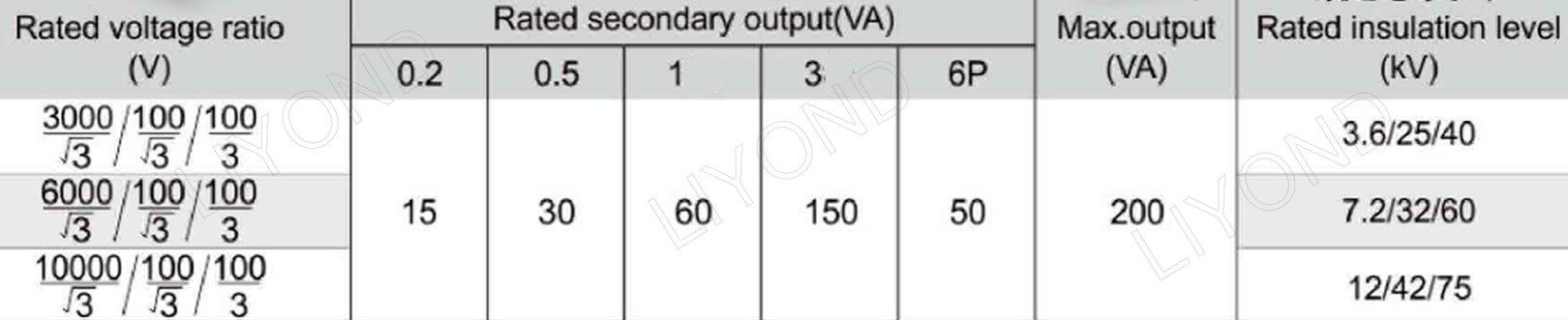

  • Technical data

JDZX10-3, 6, 10 series voltage transformers are suitable for converting high voltage into low voltage and large current into small current in 3kV, 6kV, and 10kV power systems for measurement or protection systems. In order to realize the standardization and miniaturization of measuring instruments, protection equipment and automatic control equipment.

1. Product performance meets standards
GB20840.1 GB20840.3
IEC61869-1 IEC61869-3
2. Rated frequency 50Hz or 60Hz
3.Ambient temperature –25℃~40℃
4. Altitude: 1000m above sea level
5.Indoor installation

Transformer

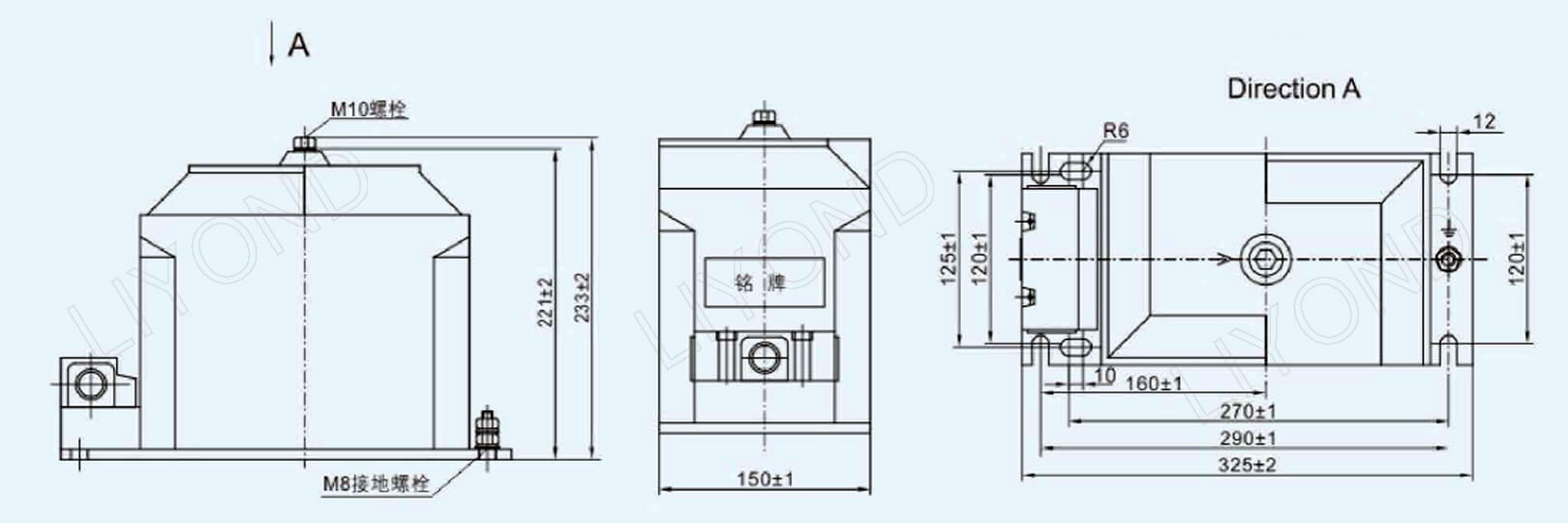

Dimensional drawing

transformer
