VSG-C/12 embedded pole lateral type high voltage vacuum circuit breaker

Sku Number: VSG-C/12

Description

VSG-C/12 type Side installation Indoor high voltage vacuum circuit breaker used spring to storage energy. The operating mechanism can be operated by two ways, by manual and electromotive operation, The characteristics is according with GB1984-2003 High Voltage AC Circuit Breaker, JB3855-1996 3.6-4.5KV Indoor AC High Voltage AC Circuit Breaker and IEC standard 62271-100:200162271-100:2001 High Voltage AC Circuit Breaker

Outstanding Features Make You Stand Out

We play extreme caution to quality and utmost attention to detail, which makes our products so perfect.

  • administration.icon02
    Modularization of Functional Unit

    The main circuit unit and running product are coherent in interchangeability.

  • administration.icon02
    Strong Versatility

    The operating mechanism can be separated from the whole circuit breaker for convenient and easy maintenance and fix.

  • administration.icon02
    Low Maintenance

    No need of adjustment of driving unit; long-acting lubricating, reliable corrosion resistance, and high mechanical stability make low maintenance possible.

  • administration.icon02
    Long-acting Lubricating

    We apply German lubricating grease boasting lower starting torsion, stronger anti-aging and oxidation resistance.

  • administration.icon02
    Strong Corrosion Resistance

    Utilizing zinc-nickel alloy plating line with a German process to make sure our corrosion resistance is 5 to 7 times stronger than ordinary zinc-plating process.

  • administration.icon02
    Strong Expandability

    This product can easily realize diverse arrangements and combinations to meet functions like expandability and control.

  • Product Detail
  • Technical Parameters
  • Technical Drawings

VSG-C/12 type Side installation Indoor high voltage vacuum circuit breaker used spring to storage energy. The operating mechanism can be operated by two ways, by manual and electromotive operation, The characteristics is according with GB1984-2003 High Voltage AC Circuit Breaker, JB3855-1996 3.6-4.5KV Indoor AC High Voltage AC Circuit Breaker and IEC standard 62271-100:200162271-100:2001 High Voltage AC Circuit Breaker

Applying Ambient Conditions:

1. Ambient temperature: -25℃一+40℃
2. Relative humidity: the average humidity of a day should be no mare than 95%; the average humidity of a month should be no more than 90 %.
3. Saturated vapor pressure: the average pressure of a day should be no more than 2. 2kPa, the average humidity of a month should be no more than 1.8kPa.
4. Earthquake intensity: not exceed 8 degrees.
5. Height above sea level: ≤1000m(not including special requirements)
6. Environmental conditions: It should be used in the places without fire, explosion, serious filth, chemical erosion and violent VSL ration.

NO. Item Unit Data
Type / Insulating cylinder/ Epoxy resin embedded poles/ Nylon embedded poles Upper outlet/

Right outlet

1 Rated voltage KV 12
2 Rated short time power frequency withstand voltage(1min) 42
3 Rated lighting impluse withstand voltage(peak) 75
4 Rate frequency Hz 50
5 Rated current A 630,1250 630,1250
6 Rated short-circuit breaking current KA 25 31.5
7 Rated short time withstand current 25 31.5
8 Rated short-circuit duration s 4
9 Rated peak withstand current KA 63 80
10 Rated short-circuit closing current 63 80
11 Power frequency withstand voltage of secondary circuit(1 min) v 2000
12 Rated single/ back-to-back capacitor bank breaking current A 630/400
13 Switching time ms 20-50
14 Closing time 35-70
15 Mechanical life time M2 level 10000(630-125/25-31.5)
16 Electrical life E2 level
17 Moving and fixed contacts allow wear accumulation thickness mm 3
18 Rated closing operating voltage v AC110/AC220/DC110/DC220
19 Rate breaking operating voltage
20 Rated voltage of energy starge motor
21 Rate power of energy storage motor w 90
22 Storage time s ≤15
23 Contact distance mm 11±1
24 Over stroke 3±1
25 Rated order of operation / O-0.3s-CO-180s-CO

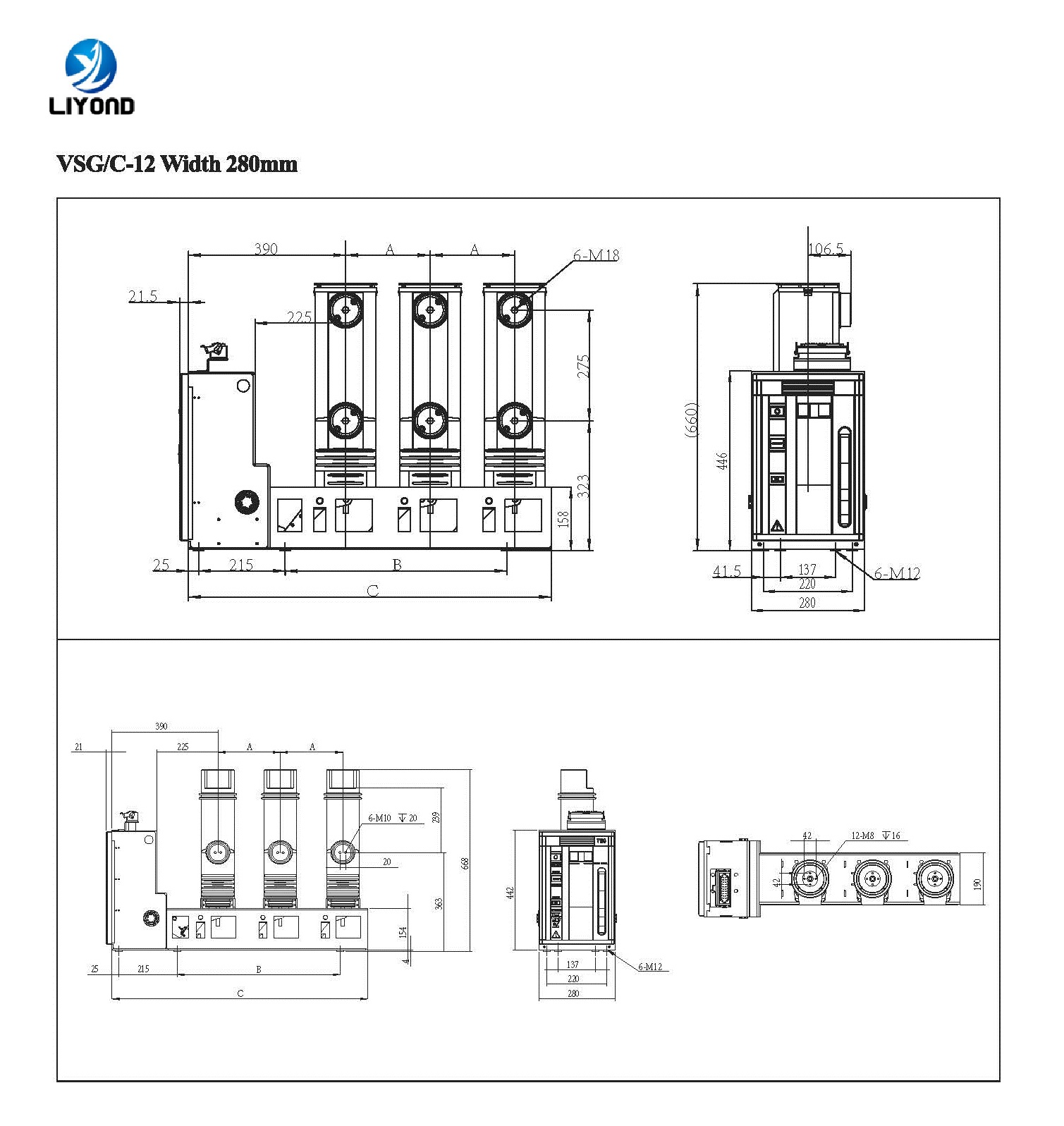

VSG-C/12 embedded pole lateral type high voltage vacuum circuit breaker drawing
