Compact design, easy front-mounting installation

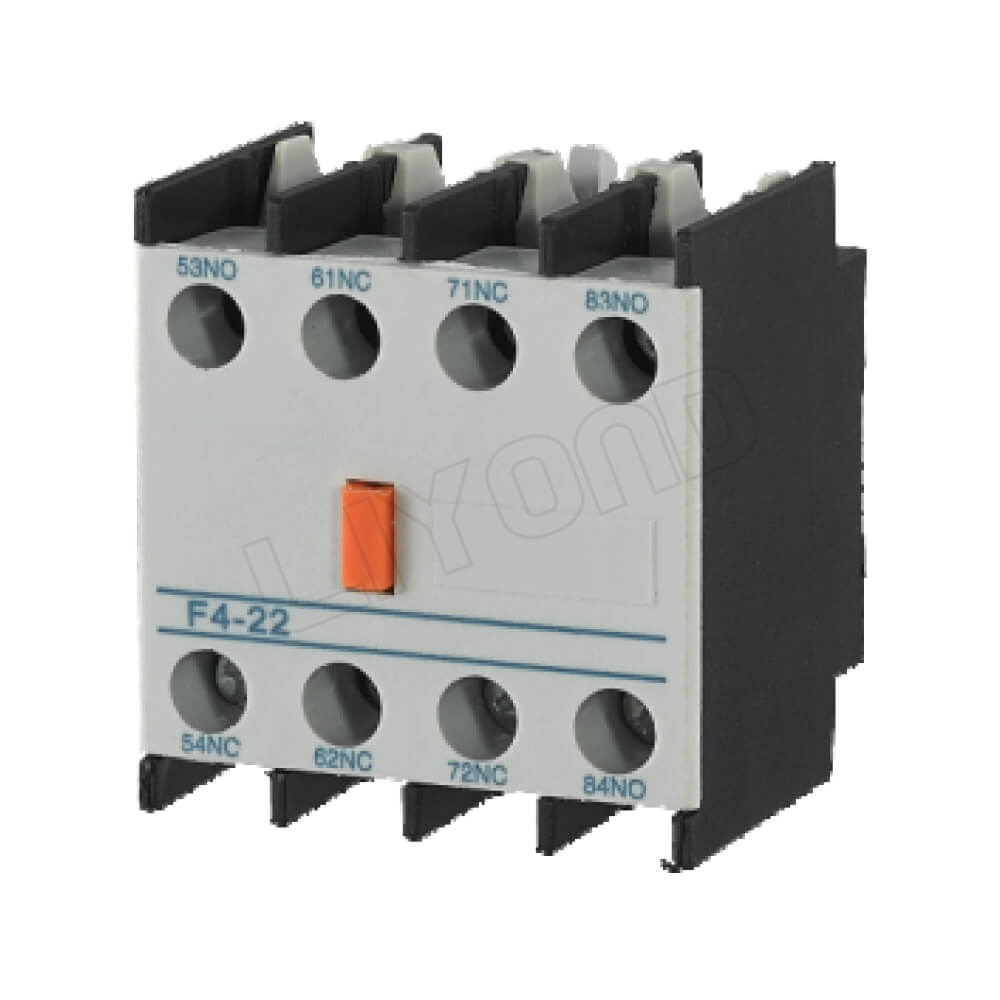

Contact configuration: 1NO+1NC(Model: F4-11)/2NO + 2NC (Model: F4-22)
Reliable performance with long electrical and mechanical life
Clearly labeled terminals for quick wiring
Compatible with standard modular contactors in industrial control systems
Technical Specifications:
Rated insulation voltage: 690V
Conventional thermal current (Ith): 10A
Electrical life: ≥ 1 million operations
Mechanical life: ≥ 10 million operations
Mounting position: Front-mounted on contactors
Standard compliance: IEC/EN 60947-5-1
Applications:
Motor control circuits
Interlocking systems
Signaling and feedback loops
PLC input interface expansion

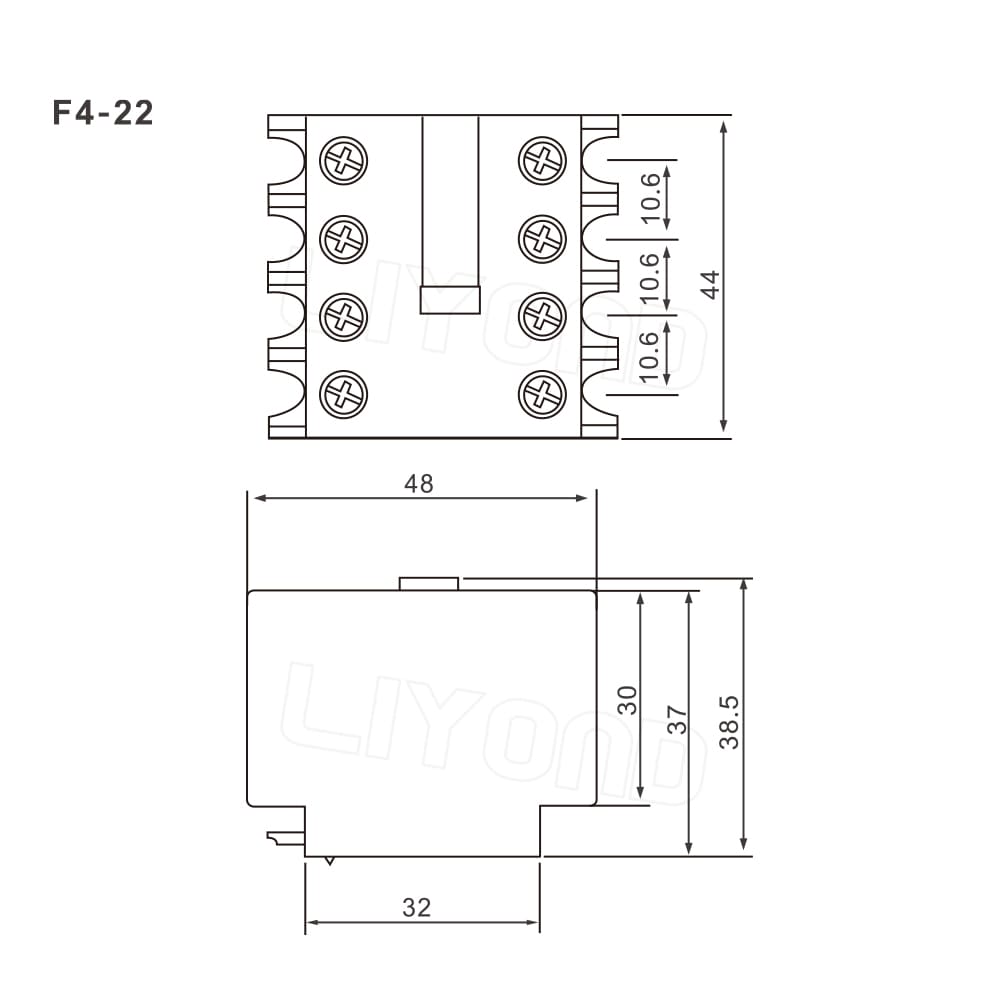

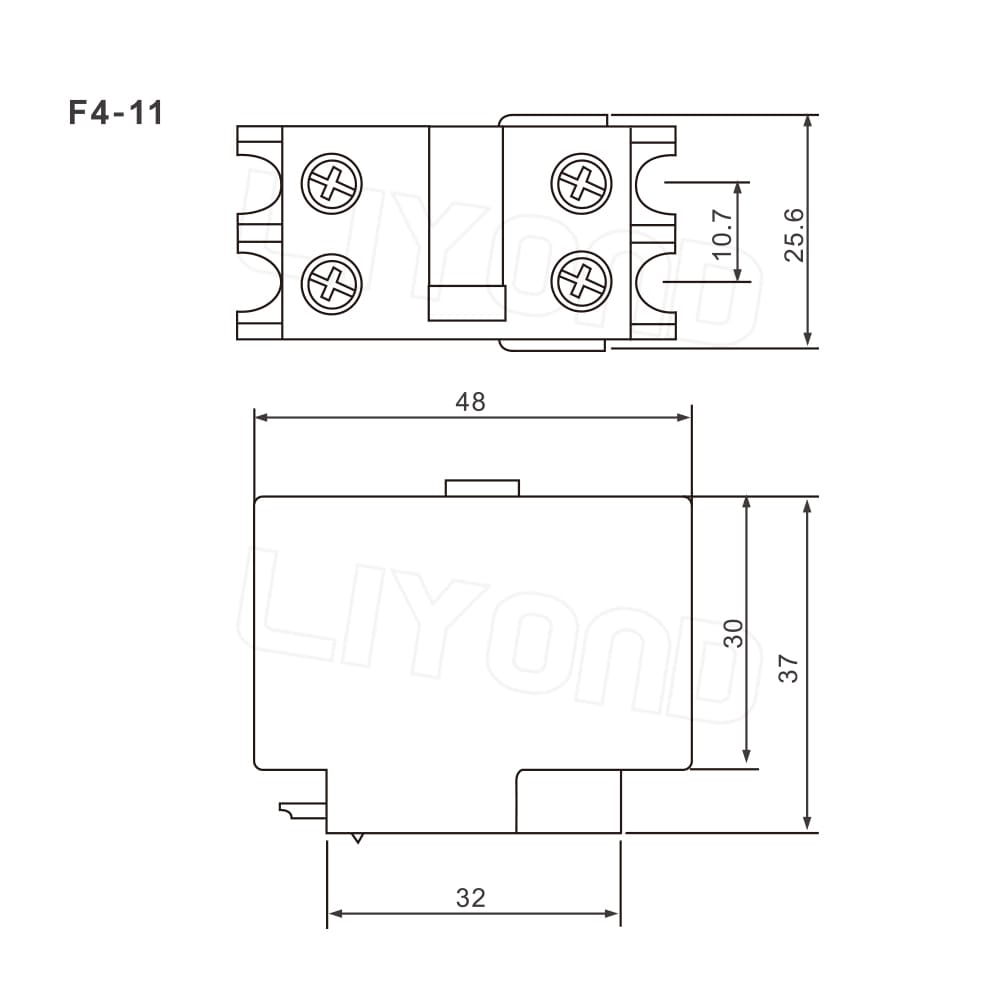

Dimensional drawing
1. Product name, model, quantity
2. Indicate the number of contact pairs and switch sections, type and installation method
3. Whether to use connection accessories
4. If the user has other special requirements, please specify
Equip your business with long-lasting switchgear components that respond to your needs and smoothen electrical operations at affordable costs.
Since 2011, Liyond has been dedicated to designing and manufacturing reliable and superior switchgear components, whilst providing impactful solution to customers all over the world.
