LYA103 GC5-630/1000A with 12 sheets Tulip contacts for VCB vacuum circuit breaker

Model: LYA103

Description

Model No.: LYA103 Primary disconnect is generally used in middle and/or high voltage switching devices, which are essentially intended for rated electrical current disconnection operation and current transmission by providing a contact finger-trap which is connected to a mating contact.

  • Material

    Made of high 99.9% pure T2 copper tube, customize the thickness of silver coating;

  • Customize

    Can customize specific high thickness silver coating, guarantee the thickness of silver coating, high abrasion resistance;

  • General
  • Technical parameters

The tulip contact used on the vacuum circuit breaker is a special electrical contact. Its shape is like a plum blossom, which can increase the contact area and reduce the contact resistance, thus improving the electrical performance and reliability of the circuit breaker. Torx contacts are usually made of copper, and the surface is silver-plated or gold-plated to improve its conductivity and corrosion resistance. In vacuum circuit breakers, tulip contacts are usually used to disconnect or connect important electrical equipment such as high current and high voltage in the circuit.

Rated current: 630/1000A
Material copper with thick silver plating, stainless steel with magnetic free
Contact blade 12pcs
Application vacuum circuit breaker

Drawing

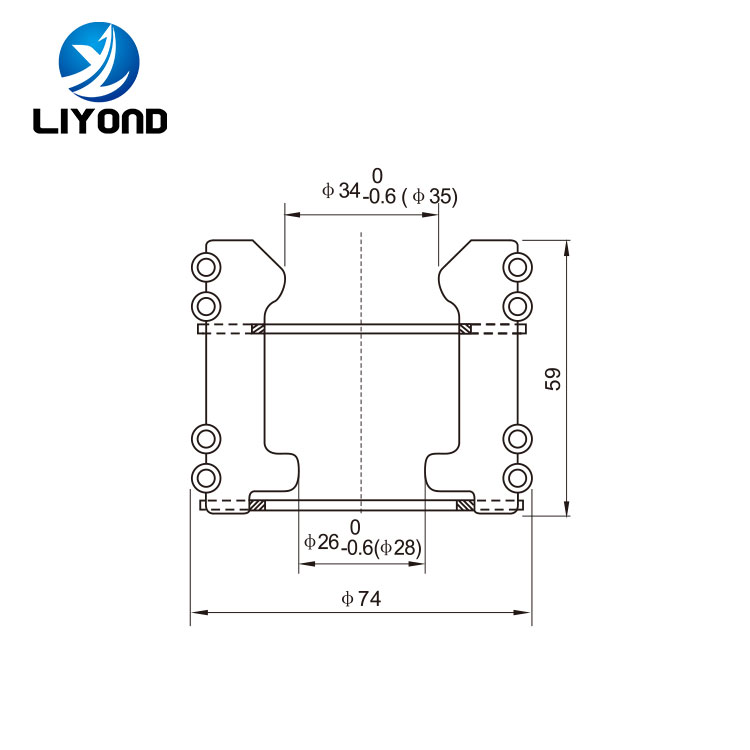

LYA103 GC5-630/1000A with 12 sheets Tulip contact drawing
