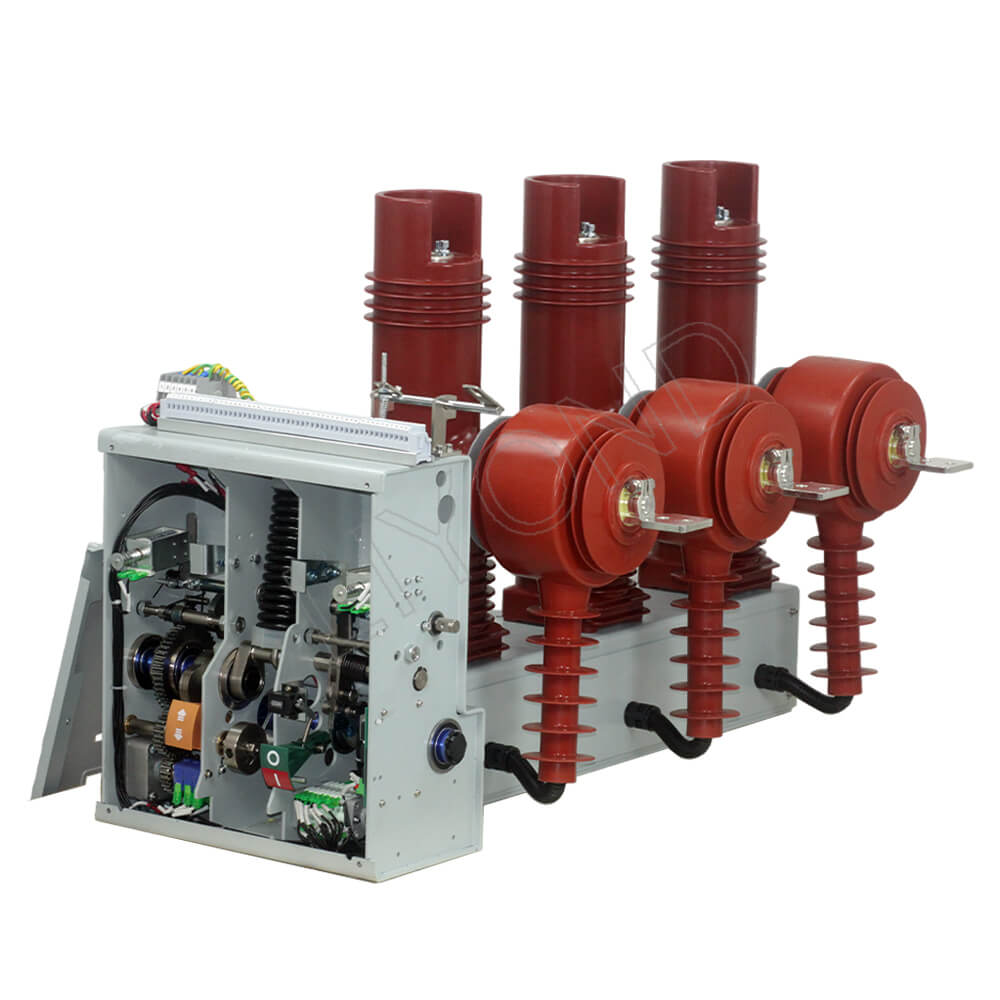

VBI-24 Side Mounted Vacuum Circuit Breaker With 3 Current Transformers CT For Indoor Switchgear

Model: VBI-24C

Description

The operation mechanism of VBI-24 side mounted type vacuum circuit beaker is used spring to storage energy,which can be operated by two ways,manual or electrical.The characteristics are accordance with GB1984-89 ,JB3855-96<10kv Indoor High Voltage Vacuum Circuit Breaker General Technical Specifications>,Relevant Provisions of IEC56 standard.

Outstanding Features Make You Stand Out

We play extreme caution to quality and utmost attention to detail, which makes our products so perfect.

  • administration.icon02
    Modularization of Functional Unit

    The main circuit unit and running product are coherent in interchangeability.

  • administration.icon02
    Strong Versatility

    The operating mechanism can be separated from the whole circuit breaker for convenient and easy maintenance and fix.

  • administration.icon02
    Low Maintenance

    No need of adjustment of driving unit; long-acting lubricating, reliable corrosion resistance, and high mechanical stability make low maintenance possible.

  • administration.icon02
    Long-acting Lubricating

    We apply German lubricating grease boasting lower starting torsion, stronger anti-aging and oxidation resistance.

  • administration.icon02
    Strong Corrosion Resistance

    Utilizing zinc-nickel alloy plating line with a German process to make sure our corrosion resistance is 5 to 7 times stronger than ordinary zinc-plating process.

  • administration.icon02
    Strong Expandability

    This product can easily realize diverse arrangements and combinations to meet functions like expandability and control.

  • Product Detail
  • Technical Parameters

VBI-24 indoor medium-voltage sealed vacuum circuit breaker is suitable for air-insulated indoor switches and is used for control and protection in power grids with AC and rated voltage of 24KV and below. Vacuum circuit breakers are used in frequent It has extremely excellent performance in operation and situations where the circuit breaker current needs to be opened, fully meets the requirements of automatic closing, and has high reliable operation and service life.

The operation mechanism of VBI-24 side mounted type vacuum circuit beaker is used spring to storage energy, which can be operated by two ways, manual or electrical. The characteristics are accordance with GB1984-89 <AC High Voltage Circuit Breaker>, JB3855-96<10kv Indoor High Voltage Vacuum Circuit Breaker General Technical Specifications>, Relevant Provisions of IEC56 standard.

Advantages of installing current transformers on side-mounted circuit breakers
1. Integrated design: Installing the current transformer directly on the circuit breaker makes installation and wiring easier, reducing additional installation space and costs.
2. Instant response: Directly monitoring the current near the circuit breaker can respond to fault conditions more quickly, improving the protection speed and accuracy of the system.
3. Reduced interference: Reduced interference and attenuation in the signal transmission path, improving the accuracy of the measurement.

No. Name unit Data
* Type / 口Insulating cylinder

口Epoxy resin embedded poles

口Nylon embedded poles

口Upper outlet

口Side outlet

1 Rated voltage kv 24
2 Rated insulation level Power frequency withstand voltage 65
Rated lightning impulse withstand voltage 125
3 Contact opening distance

mm

12±1
4 overtravel 3±0.5
5 Distance between phases 210±1
6 Contact closing bounce time ms ≤2
7 Three-phase points,closing at different times ≤2
8 Opening time ≤50
9 Closing time ≤100
10 Average opening speed(contact is separation after 6mm) M/s 0.9~1.3
11 Average opening speed(contact is closed before 6mm) 0.4~0.8
12 Closing contact contact pressure N 25KA 31.5KA
2200±200 3200±200

External Dimensions

VBI-24C-1250-25-210 vcb drawing
