VBI-24 24kV Side Mounted Insulating Cylinder 3-phase Vacuum Circuit Breaker

Model: VBI-24

Description

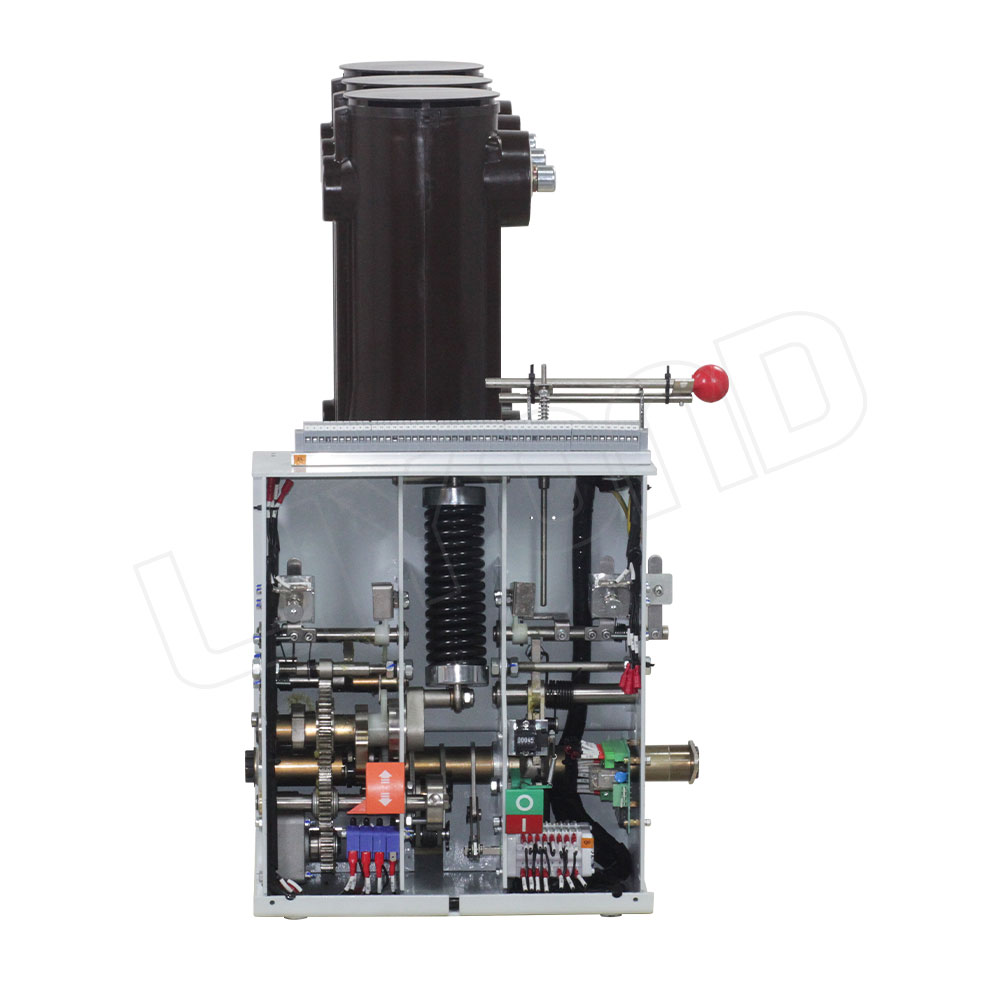

The operation mechanism of VBI-24 side mounted type vacuum circuit beaker is used spring to storage energy,which can be operated by two ways,manual or electrical.The characteristics are accordance with GB1984-89 ,JB3855-96<10kv Indoor High Voltage Vacuum Circuit Breaker General Technical Specifications>,Relevant Provisions of IEC56 standard.

Outstanding Features Make You Stand Out

We play extreme caution to quality and utmost attention to detail, which makes our products so perfect.

  • administration.icon02
    Modularization of Functional Unit

    The main circuit unit and running product are coherent in interchangeability.

  • administration.icon02
    Strong Versatility

    The operating mechanism can be separated from the whole circuit breaker for convenient and easy maintenance and fix.

  • administration.icon02
    Low Maintenance

    No need of adjustment of driving unit; long-acting lubricating, reliable corrosion resistance, and high mechanical stability make low maintenance possible.

  • administration.icon02
    Long-acting Lubricating

    We apply German lubricating grease boasting lower starting torsion, stronger anti-aging and oxidation resistance.

  • administration.icon02
    Strong Corrosion Resistance

    Utilizing zinc-nickel alloy plating line with a German process to make sure our corrosion resistance is 5 to 7 times stronger than ordinary zinc-plating process.

  • administration.icon02
    Strong Expandability

    This product can easily realize diverse arrangements and combinations to meet functions like expandability and control.

  • Product Detail
  • Technical Parameters
  • Technical Drawings

The operation mechanism of VBI-24 side mounted type vacuum circuit beaker is used spring to storage energy,which can be operated by two ways,manual or electrical.The characteristics are accordance with GB1984-89 <AC High Voltage Circuit Breaker>,JB3855-96<10kv Indoor High Voltage Vacuum Circuit Breaker General Technical Specifications>,Relevant Provisions of IEC56 standard.

No. Name unit Data
* Type / 口Insulating cylinder

口Epoxy resin embedded poles

口Nylon embedded poles

口Upper outlet

口Side outlet

1 Rated voltage kv 24
2 Rated insulation level Power frequency withstand voltage 65
Rated lightning impulse withstand voltage 125
3 Contact opening distance

mm

12±1
4 overtravel 3±0.5
5 Distance between phases 210±1
6 Contact closing bounce time ms ≤2
7 Three-phase points,closing at different times ≤2
8 Opening time ≤50
9 Closing time ≤100
10 Average opening speed(contact is separation after 6mm) M/s 0.9~1.3
11 Average opening speed(contact is closed before 6mm) 0.4~0.8
12 Closing contact contact pressure N 25KA 31.5KA
2200±200 3200±200

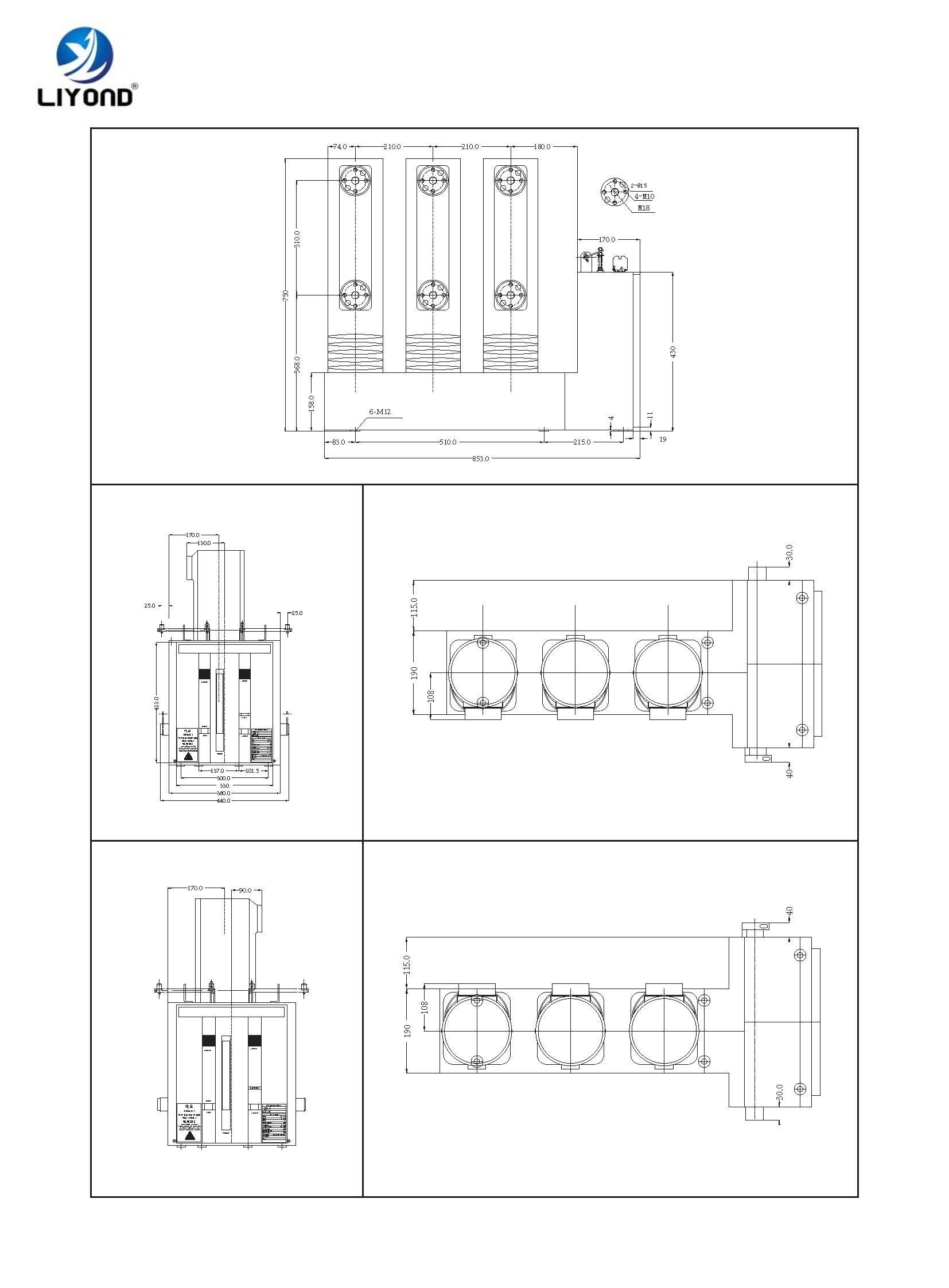

VBI-24 insulation cylinder lateral type VCB drawing
