VSG-12 indoor high-voltage vacuum circuit breaker is an indoor and outdoor switching device used in 12KV power systems. It is used as a protection and control unit for power grid equipment and power design of industrial and mining enterprises. It is suitable for switching loads of different natures and frequent operations. The occasion of breaking short-circuit current for the first time. The product adopts VSG module integrated spring operating mechanism. The primary part of VSG-12 can use a sealed pole to seal the vacuum arc extinguisher and the main conductive circuit parts into a whole, protecting the arc extinguisher from collision, dust and condensation. It has strong environmental adaptability and greatly reduces the cost of the arc extinguisher. operation and maintenance costs
Advantage:
1. Integration, modularization, miniaturization and lightweight;
2. High reliability, long life, more stable performance;
3. High degree of generalization, inventory and standardization of parts;
4. High transmission efficiency and more reasonable design;
Applying Ambient Conditions:
1.Ambient temperature: -10℃-+40℃;
2.Relative humidity: the average humidity of a day should be no more than 95%; The average humidity of a month should be no more than 90%;
3.Earthquake intensity: not exceed 8 degrees;
4.Saturated vapor pressure: the average pressure of a day should be no more than 2.2kPa; the average pressure of a month should be no more than 1.8Kpa;
5.The height above sea level: ≤1000 m (Except special requirements)
6.It should be installed in the places without fire, explosion, serious filth, and chemical erosion and violent VSL ration.
|
No.
|
Item
|
Unit
|
Data
|
|
|
1
|
Rated voltage
|
kV
|
12
|
|
|
2
|
Rated frequency
|
Hz
|
50
|
|
|
3
|
Rated insulation level
|
1min power frequency withstand voltage
|
kV
|
42
|
|
Rated lightning impulse withstand voltage
|
kV
|
75
|
||
|
4
|
Rated current
|
A
|
630/1000/1250/1600/2000/2500/3150/4000
|
|
|
5
|
Rated short circuit breaking current
Rated short-time withstand current (virtual value)
|
kA
|
20/25/31.5/40/50
|
|
|
6
|
Rated short circuit making current (peak value)
Rated dynamic current(peak value)
|
kA
|
50/63/80/100/125
|
|
|
7
|
Rated short-circuit breaking current breaking time
|
times
|
30, 50
|
|
|
8
|
Rated thermal stability time
|
s
|
4
|
|
|
9
|
Rated operation sequence
|
|
O-0. 3s-CO-180s-CO
|
|
|
10
|
Mechanical life
|
times
|
30000
|
|
|
11
|
Rated breaking current of single capacitor bank
|
A
|
630
|
|
|
12
|
The breaking current of single rated capacitance bank
|
A
|
400
|
|
|
13
|
The breaking current of rated back to back capacitance bank
|
s
|
4
|
|

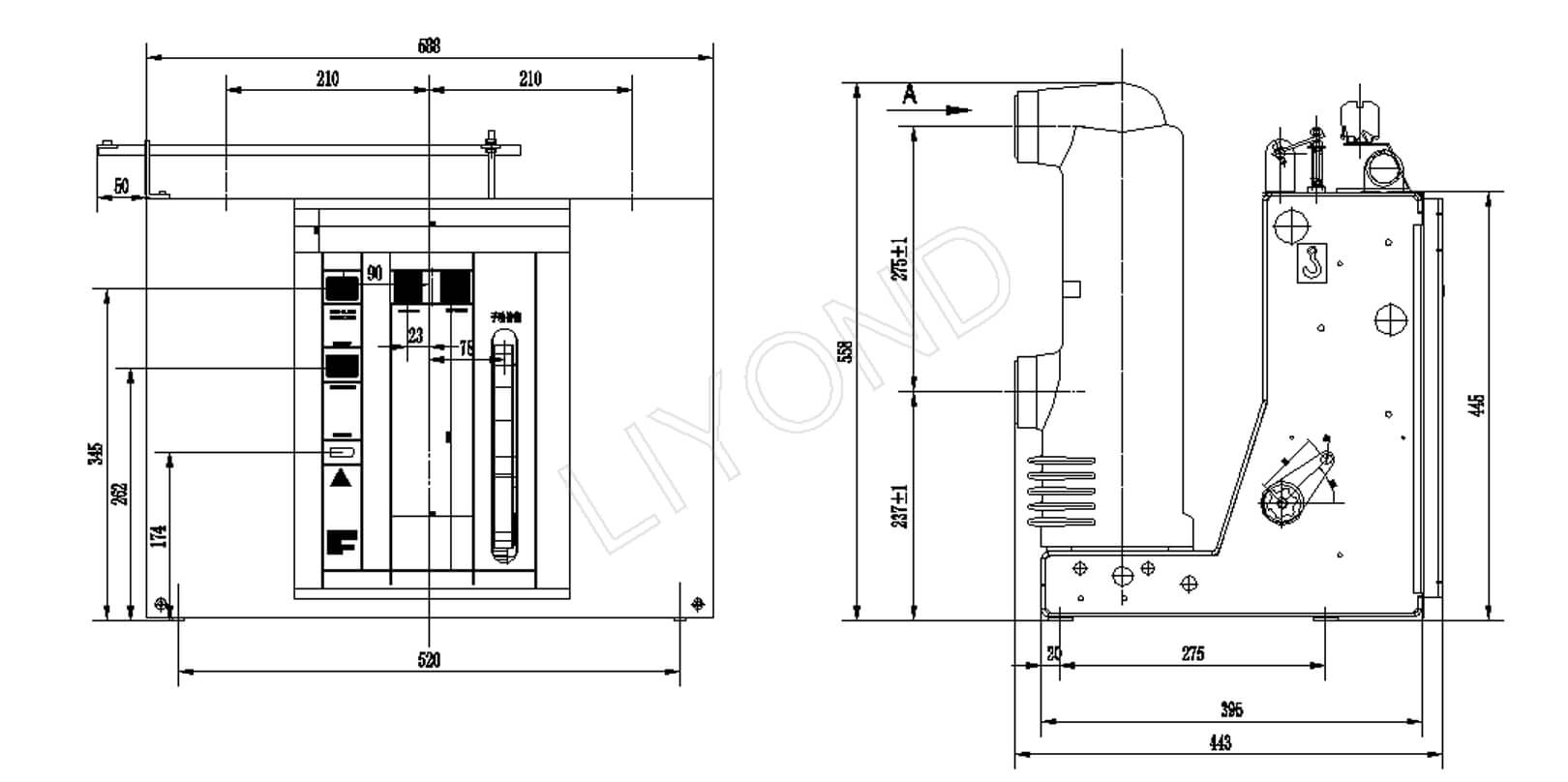

Overall dimensions
