Why is Auxiliary Switch Important in High Voltage Disconnect Switch

Auxiliary switches are prevalent power control devices employed to monitor and transmit the operational status of electrical equipment. Integrated as part of the main switch in high-voltage or medium-voltage circuit breakers, disconnectors, and other power apparatus, they facilitate tripping, closing, signal control, and interlocking protection within secondary control circuits. They can also serve as combination and transfer switches. The term “auxiliary” underscores that these are not standalone switches but rather supplementary components within the control system, acting as carriers for breaking, connecting, and interlocking actions. The open/closed state of their contacts allows auxiliary switches to determine equipment status, enabling automated control and fault identification.

High-voltage isolating switches are vital in power systems, and their auxiliary switches are indispensable key elements. The auxiliary switches in high-voltage isolating switches play a vital role in safeguarding the power system, providing multifaceted support and ensuring the safety and stable operation of the entire system.

aux contacts

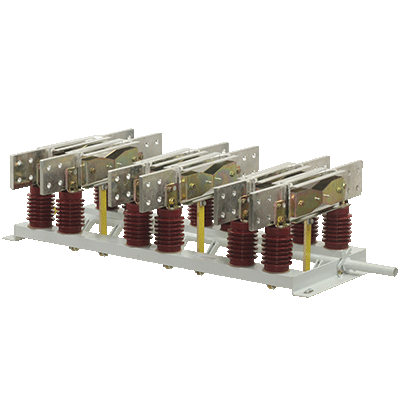

Liyond HV Disconnecting Switch

Basic Functions of Auxiliary Switches

The main function of auxiliary switch is to monitor the operating state of isolating switches and transmit control signals. When an isolating switch opens or closes, the auxiliary switch promptly and accurately reports its positional status, providing clear indication to operators or control systems of whether the isolating switch is in the open or closed state. A key example is when an isolating switch finishes closing; the auxiliary switch quickly transitions to its corresponding position, emitting a “closed” signal that is essential for the ensuing power transmission and equipment operation.

Auxiliary Switches Ensuring Power System Safety

Auxiliary switches are crucial for power system safety. Given the high risks in high-voltage environments, even small mistakes can be critical. By accurately detecting position and transmitting signals, auxiliary switch in HV disconnector switch effectively prevent safety incidents resulting from human error or equipment malfunction. For example, during servicing or maintenance, auxiliary switches confirm the isolating switch is safely open, preventing the danger of unexpected power flow and ensuring personnel safety.

Auxiliary Switch Collaboration with Other Devices

Auxiliary contacts for disconnect switch do not function independently; their cooperation with other electrical switching devices is essential for completing complex power system operations. Aux contacts for disconnect interface with relay protection units and monitoring systems to enable real-time power system surveillance and protection. Upon detection of power system anomalies, auxiliary switches swiftly relay signals to associated devices, initiating protective measures to isolate faulty circuits and ensure the safety of both equipment and personnel.

Auxiliary Switches Enhancing Power System Reliability

The integration of auxiliary switches significantly enhances the reliability of high-voltage isolating switches and, by extension, the entire power system. They are designed for stable operation across a wide range of complex operating scenarios, remaining resilient to external disturbances. Regardless of temperature extremes or humidity levels, auxiliary switches perform their duties accurately, ensuring uninterrupted power system operation. Furthermore, their robust anti-interference design effectively mitigates external factors like electromagnetic interference, guaranteeing precise and stable signal transmission.

Auxiliary Switches Selection and Maintenance

As for how to choose auxiliary switches, rational selection based on specific application scenarios and requirements is necessary. Key parameters, including the auxiliary switch’s rated voltage, current, number of contacts, and electrical endurance, must be taken into account to guarantee they can handle the actual operational demands. Additionally, regular maintenance and inspection during their service life are crucial for the timely identification and resolution of any potential issues, ultimately extending their operational lifespan.

In essence, despite their seemingly minor presence, auxiliary switches in high-voltage isolating switches are indispensable to power systems. They are a crucial element in ensuring the safe, stable, and reliable operation of the electrical grid and are fundamentally important for the power industry’s growth. Consequently, while paying attention to high-voltage isolating switches, we must also recognize the vital role of auxiliary switches. Fully understanding their key position in power systems and continuously working to optimize and refine their performance will allow us to further contribute to the advancement of the power sector.
