In medium- and high-voltage (MV/HV) switchgear systems, micro switches serve as fundamental signal conversion elements and are key components for achieving automated control and safety interlocking logic. Their core function is to convert the physical position of mechanical actuators into electrical signals recognizable by secondary circuits. As precise miniature sensors within the switchgear, micro switches occupy limited installation space but serve as a critical foundation for ensuring the reliability of logical control and the operational safety of the complete equipment.
Typical Applications of Micro Switches in Switchgear
As core equipment in power grid operations, the precise movement of internal switchgear components and their interlocking logic directly affect the safety of the entire power system. To monitor actuator positions in real time and ensure the precise execution of interlocking sequences, micro switches are installed at various key nodes to support the reliable operation of the entire electrical control loop:

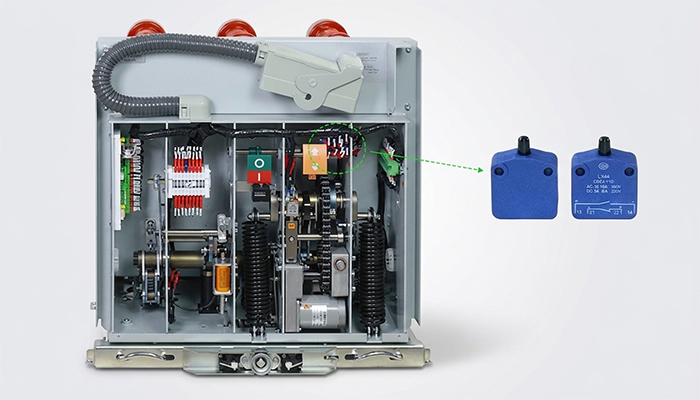

1. Circuit Breaker Operating Mechanisms
-
Position Detection: Installed at the spring charging, closing, and opening positions of the vacuum circuit breaker to feed back the current operating state of the mechanism.
-
Circuit Control: In electrical control circuits, micro switches are used to automatically cut off the power supply to the closing or opening coils, preventing the actuators from remaining energized once they reach their target positions.

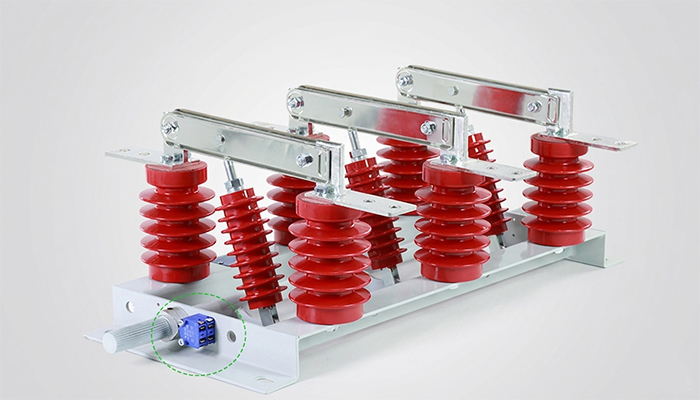

2. Disconnectors and Earthing Switches
-
Prevention of Maloperation Interlocking: Micro switches acquire the physical positions of disconnectors and earthing switches, routing these signals into the interlocking circuit.
-
Logical Control: Ensure that subsequent operations are prevented until the disconnector is fully opened or closed, thereby establishing a rigorous electrical interlocking mechanism.
Related reading: Understanding Micro Switches on Disconnectors
3. Withdrawable Switchgear
-
Position Status Indication: Used to monitor the precise positioning of the withdrawable truck at the “service,” “test,” or “disconnected/maintenance” positions.
-
Position Interlocking: If the truck has not reached the designated service position, the micro switch cuts off the closing circuit, preventing the equipment from being energized under poor contact or positional misalignment.
4. Auxiliary Protection and Monitoring
-
Door Interlocking and Enclosure Status: Used to detect whether the switchgear doors are closed, ensuring operational safety.
-
Pressure/Density Monitoring: In certain SF6 gas-insulated switchgear (GIS), they work in conjunction with density monitors to act as auxiliary trigger signals for overpressure or underpressure conditions.
Related reading: Understanding Micro Switches on Disconnectors
Technical and Environmental Requirements for Micro Switches in Switchgear
Due to the unique operating environment inside the switchgear, suitable micro switches are typically selected based on the following performance requirements:
-
Space Compactness: Modern switchgear tends to feature high integration with limited spatial availability; therefore, the installation dimensions and structural forms of micro switches must be highly compatible.
-
Signal Output Stability: Switchgear operations involve mechanical shocks and vibrations. Micro switches must possess excellent vibration resistance to ensure that contact signals are accurate and bounce-free at the moment of actuation.
-
Environmental Adaptability: Switchgear interiors are subject to temperature rises and electromagnetic interference. Micro switches must comply with relevant electrical standards and offer excellent contact reliability to withstand environmental stress during long-term operation.
Furthermore, collaborating with micro switch manufacturers is crucial during the selection process. A qualified partner not only provides components that meet rigorous technical specifications but also offers customized mounting solutions and specialized testing data to ensure long-term reliability in demanding switchgear environments.
Conclusion: The Enduring Value of Micro Switches in Modern Switchgear
In the context of grid switchgear evolving toward intelligence and digitalization, even though various new non-contact sensors continue to emerge, the micro switch—with its mechanical characteristic of direct physical contact separation—remains the most intuitive and robust safety barrier in electrical control systems. Rational device selection and ensuring its consistent actuation under harsh operating conditions have decisive practical significance for improving the long-term operational stability of switchgear and preventing maloperation accidents.
