ES12 Indoor AC High Voltage Earthing switch/Ground switch

Model: ES12

Description

ES12 indoor AC high voltage earthing switch is an advanced level product with high-tech parameters performance. After comprehensive evaluation, it conforms to GB1985 and IEC62271 standard, applies to power system of 3-12kV and three-phase AC 50Hz. It owns short-circuit making capacity to protect other electric equipment not being damaged. Can be used with various high voltage switchgear, also play a protective role in the high voltage electrical equipment overhaul.

  • administration.icon02
    Material

    Conductive parts made of silver-plated electrolytic copper(99.9%).

  • administration.icon02
    Feature

    The blades are directly connected to the drive shaft. Contact elements are overdimensioned according to the requirements in order to guarantee, together with a high contact pressure between blades and contacts, a reduced ohmic resistance at the contact surface and a minimum metal wear-off during the life of the grounding switch, with the necessary robustness to withstand thermal and mechanical stresses under short-circuit conditions.

  • Technical Parameter
  • Drawing
Item Unit Data
Rated voltage kV 12
Rated short-time withstand current kA 31.5
Rated short-circuit duration s 4
Rated short-circuit making current kA 80
Rated peak withstand current kA 80
Rated insulation level PF withstand voltage(1 min) kV Phase to earth 42
Lightning impulse withstand voltage Phase to phase 75
Mechanical endurance time 2000

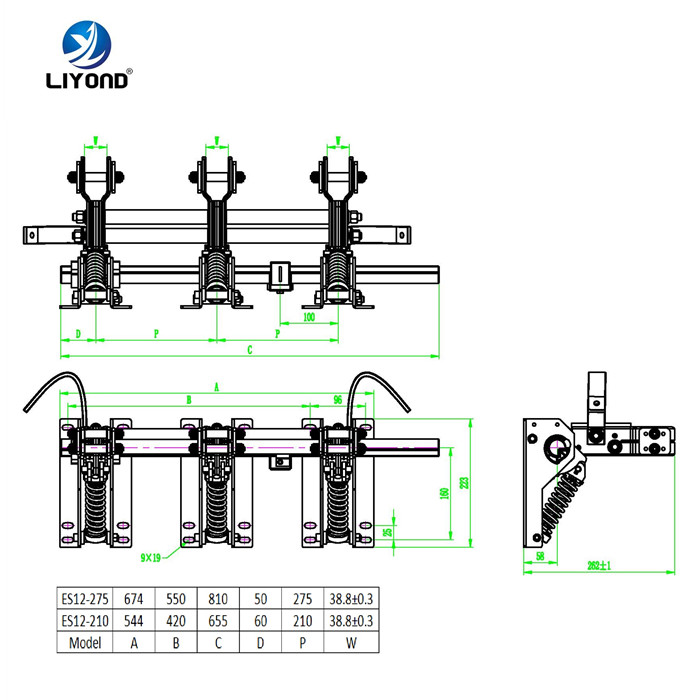

ES12 Indoor AC High Voltage Earthing switch drawing
