FLN36-24D Indoor High Voltage SF6 Load Break Switch lbs

Model: FLN36-24D

Description

FLN36-24D load break switch use SF6 gas as arc extinguishing and insulating medium. There are three work stations: opening, closing and grounding in the switch. It has small volume, installing easy-to -use, strong environmental adaptabiliy and other characterist.

  • administration.icon02
    Good Safety Performance

    If internal arcing occurs, the housing has an internal structure weak point, it will be rushed to open, followed by the cabinet above the shutter release arc red open air overpressure stream-oriented outside the cabinet, ensure that the switch cabinet security checks.

  • administration.icon02
    High Security and Reliability

    Load break switch sets closing, opening, earthing three at one, filled with SF6 gas encapsulated in epoxy resin housing, three-position interlock, have compact structure.

  • administration.icon02
    Other Advantages

    Small size, light weight, maintenance-free, easy and safe to operate.

  • Product Detail
  • Technical Parameters
  • Drawing

It can be divided into two types: FLN □-24kV ( K type single spring operating mechanism ), FLRN □-24kV(A type double spring operating mechanism). The latter type could be equipped with fuse combination, having control and protecting function, which can be used for power supply and substation as a protecting and control device, especially suitable for ring main unit, cable distribution box and switching substation.



Manual operating mechanism

K type spring dual-function operating mechanism:

As a inlet control unit for FLN□-24kV, the working principle of K type spring operating mechanism is spring press and release.

Earthing operation:

Driven by the handle, upper crank arm rotates and presses spring 2 to store energy, when the max energy reaches continue rotate the rank arm, the energy storage spring starts to release energy and drive the upper trigger, enables the connecting bar to drive the crank arm, crank arm rotates and drives the moving contactor for earthing.

Switch on operation:

Driven by the handle, lower crank arm 1 rotates, presses spring 2 to store energy, when the energy released, it drives the trigger 8, enables connecting bar to drive the crank arm, crank arm rotates and drives the moving contactor and load break switch turns on.

Switch off operation:

Rotate the main shaft crank arm counterclockwise by the handle, release the energy storage spring and the load break switch turns off.

A type spring dual-function operating mechanism:

As a outlet control unit for FLRN□-24kV.

Working principle of A type mechanism is same as K type, in addition, it has fuse striker trip function.

For A type mechanism. Electromagnetic trip is also available for customers requirement.

Switch on operation:

Driven by the handle, lower crank arm 1 rotates to press switch on spring 12 and switch off spring 8 at the same time, to provide sufficient energy required by switching off. When the lower crank arm 1 buckles the pin and drives trigger to move, it makes the lower roller wheel tripped, and release the switch on spring and load break switch turns on.

Switch off operation:

Press the switch off button or push the trip pin 2 by the fuse striker, release   the spring and load switch turns off.

Earth operation:

Earthing operation of A type mechanism is the same as that of K type.



Motorized operating mechanism

Motor operation can be added to both types of operating mechanisms, which means it can be operated manually or motorized.

Operating voltage: DC48V AC/DC 110V 220V

No.
Item
Unit Data
1 Rated voltage kV 24
2 Rated frequency Hz 50
3 Rated current A
630
4 Rated active load breaking current 630
5 Rated closed loop dropout current 630
6 Lightning impulse withstand voltage kV 125
7 1min power frequency withstand voltage 65
8 Rated short-time withstand current(2s) kA 20
9 Rated peak withstand current 50
10 Rated short-circuit closing current(peak) 50
11
Mechanical life Load switch time 3000
Earth switch 2000

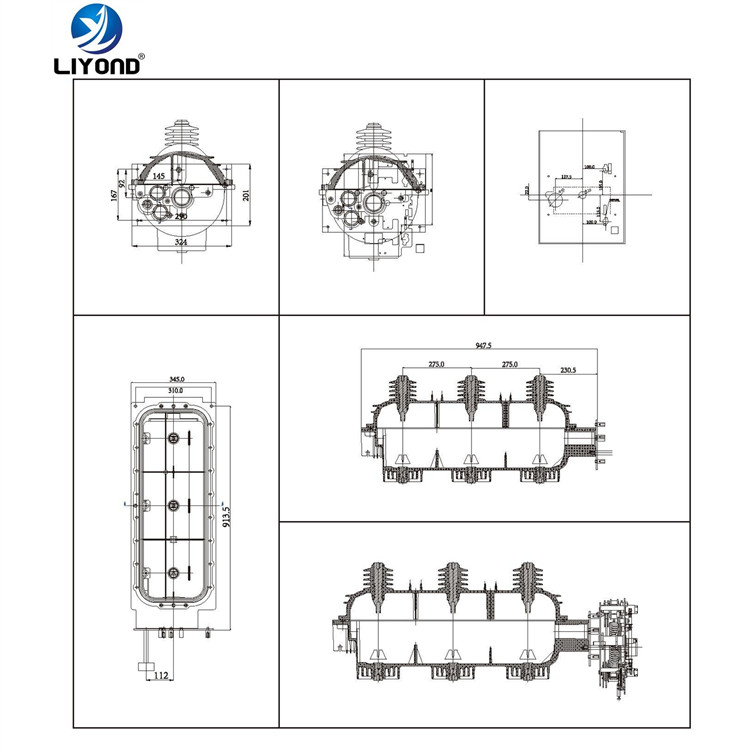

FLN36-24D Indoor AC HV SF6 Load Break Switch drawing
