JDZ(X)10 Type Casting Insulation Single-phase Voltage Transformer

JDZ(X)10 series of voltage transformers are single-phase epoxy resin cast insulated, fully enclosed products, suitable for use in power systems with rated frequencies of 50Hz or 60Hz and rated voltages of 3kV, 6kV and 10kV for energy measurement, voltage monitoring and relay protection. This product complies with IEC186 and GB1207-1997 (voltage transformer) standards.
This series of voltage transformers is an epoxy resin insulated fully enclosed structure. The core and winding are cast into one body. It is small in size and light in weight. The secondary lead end is covered with an outlet box and has three feeder outlets in different directions.

Voltage transformer usage conditions
1. The altitude does not exceed 3,000 meters;
2. The ambient temperature should not be higher than +40℃ and not lower than -5℃
3. The relative humidity of the surrounding air is not greater than 85% (20℃);
4. Meet II pollution level;
5. There is no corrosive gas in the installation site

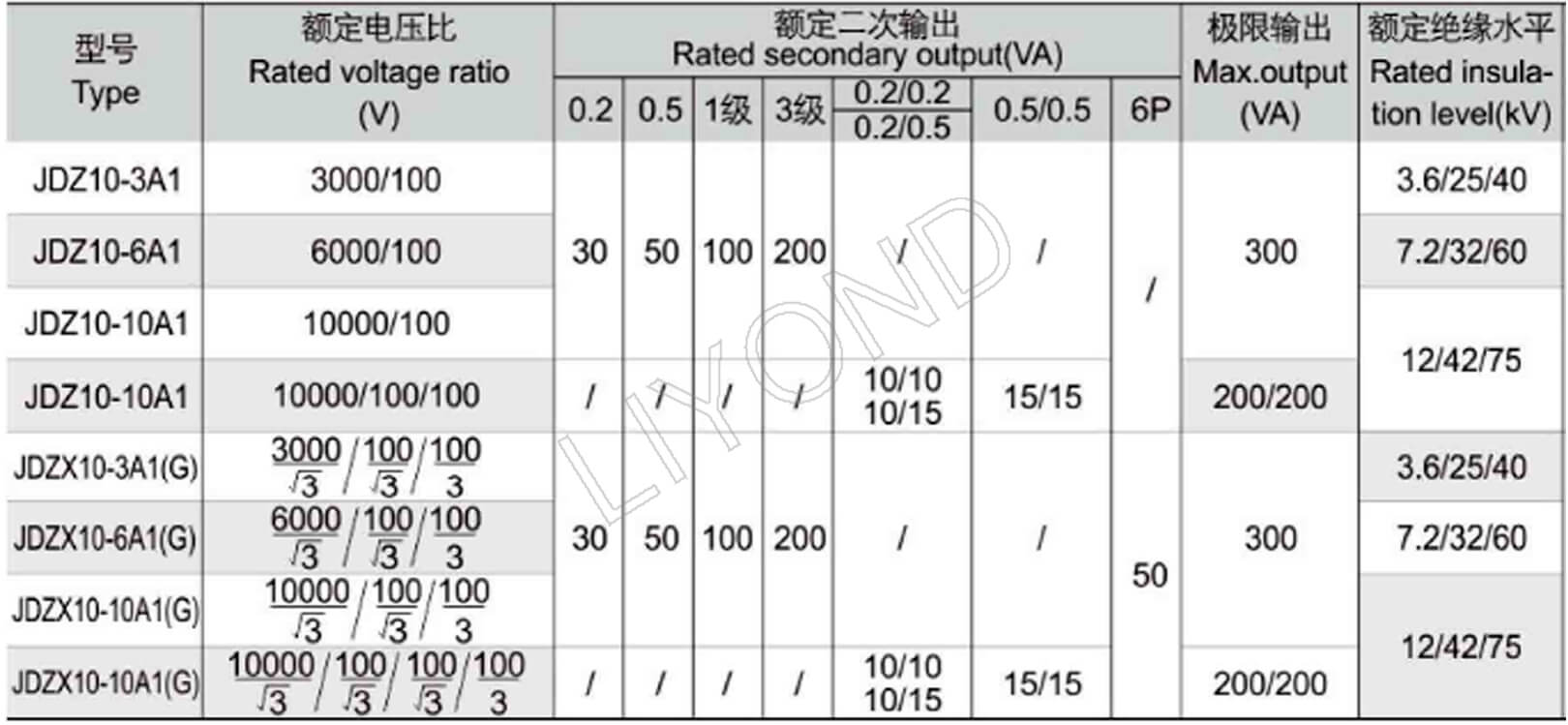

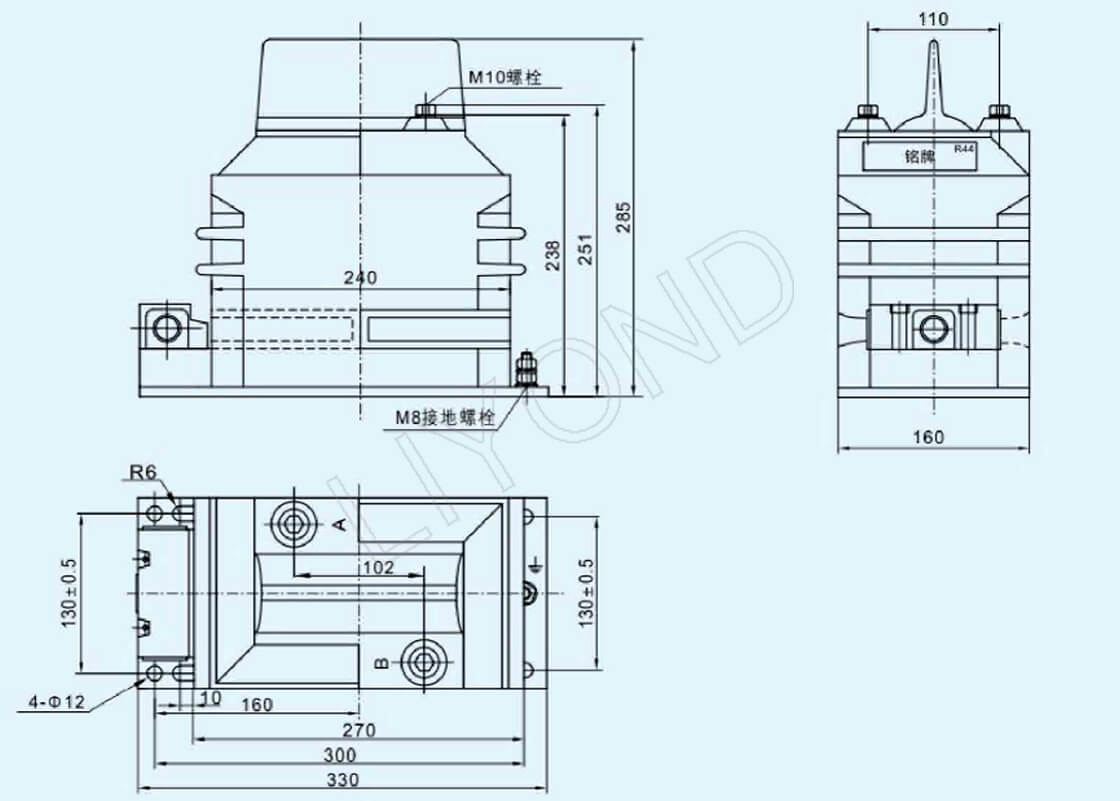

Dimensional drawing
