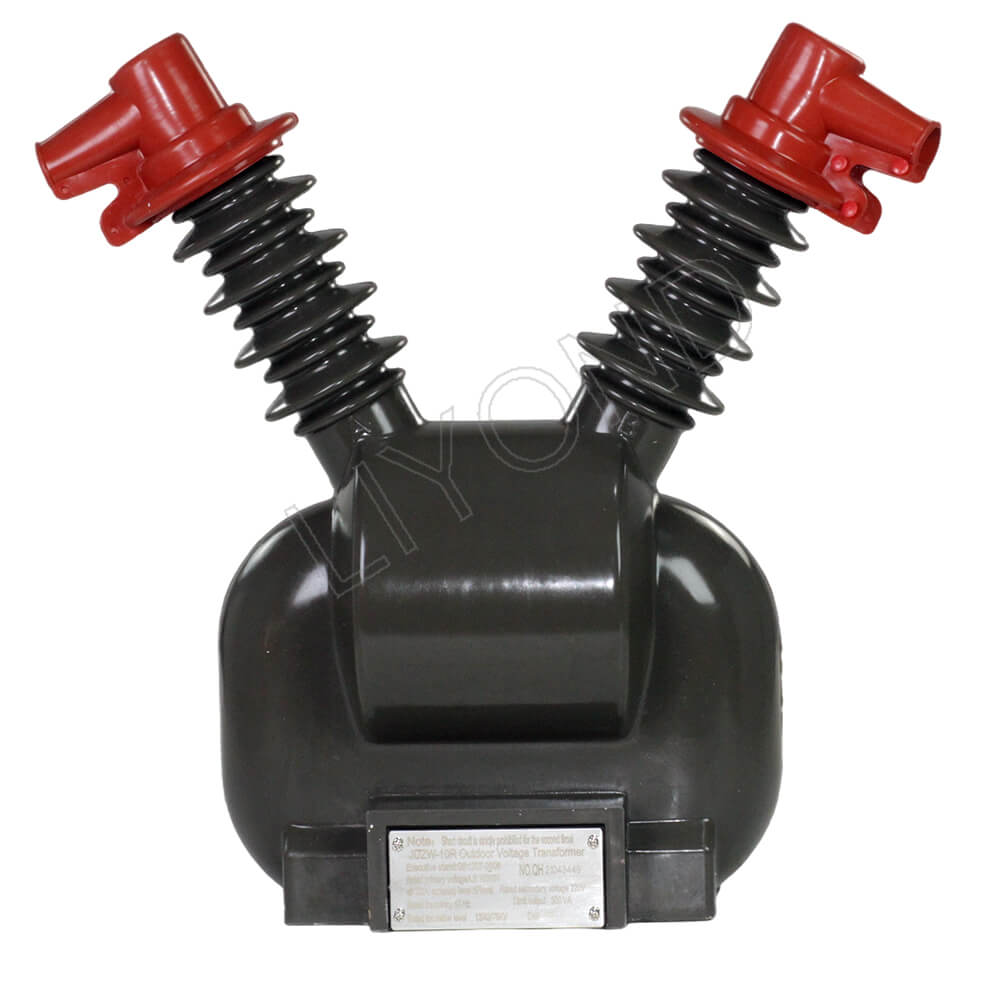

Outdoor Voltage Transformer For ZW32 Vacuum Circuit Breaker Recloser

Model: JDZW-10R

Description

JDZW-10R type voltage transformer is an outdoor epoxy resin casting insulation fully enclosed structure, suitable for AC 50HZ or 60HZ, rated voltage 10KV and below in the neutral point non-effective grounding power system, for power metering, voltage monitoring and relay protection. This product conforms to IEC186 and GB1207-1997 "Voltage Transformer" standard.
  • General
  • Features
  • Technical data
  • Drawing
  • Environmental conditions

JDZW-10R belongs to 10kV outdoor voltage transformer, which is mainly used with ZW20 and ZW32 type outdoor vacuum circuit breakers. The A and B ends of the product are equipped with high-voltage fuses respectively, avoiding the burning of the transformer. The product is statically molded by epoxy resin full vacuum casting, which can ensure that there are no air bubbles inside the product, and the bureau discharge is better than the national and state network standards.



Model Meaning

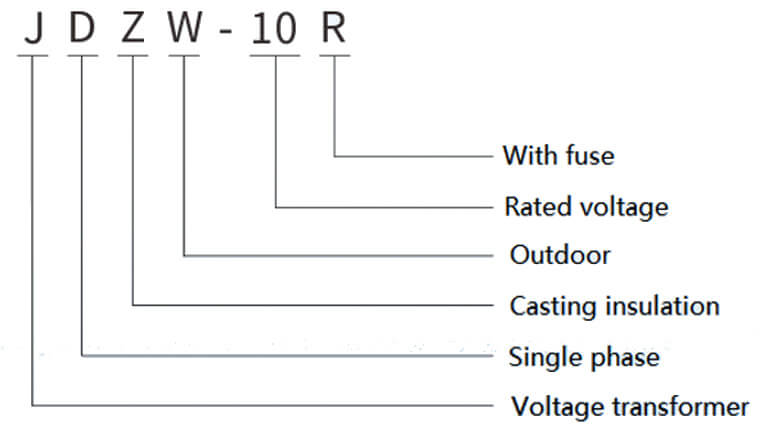

JDZW-10R Model Meaning

The voltage transformer adopts outdoor epoxy resin fully enclosed casting, with arc resistance, UV resistance, aging resistance, large creepage distance, small partial discharge, strong anti-over-voltage ability, etc.

Product code Rated voltage ratio (A) Rated secondary current (A) Max. output (VA) Rated insulation level (KV) Wiring diagram
0.2 0.5 1 class 3 class 0.2/0.2 0.5/0.5 6P
0.5/0.2
JDZW-10R 10000/100 40 80 200 300 / / / 12/42/75 Figure 1- Figure 2
10000/220 40 80 200 600 / / /
1000/100/100 / / / / 25/25 40/40 / Figure 3- Figure 4
10000/100/220 / / / / 0.2(0.5), 25-40(80)/500

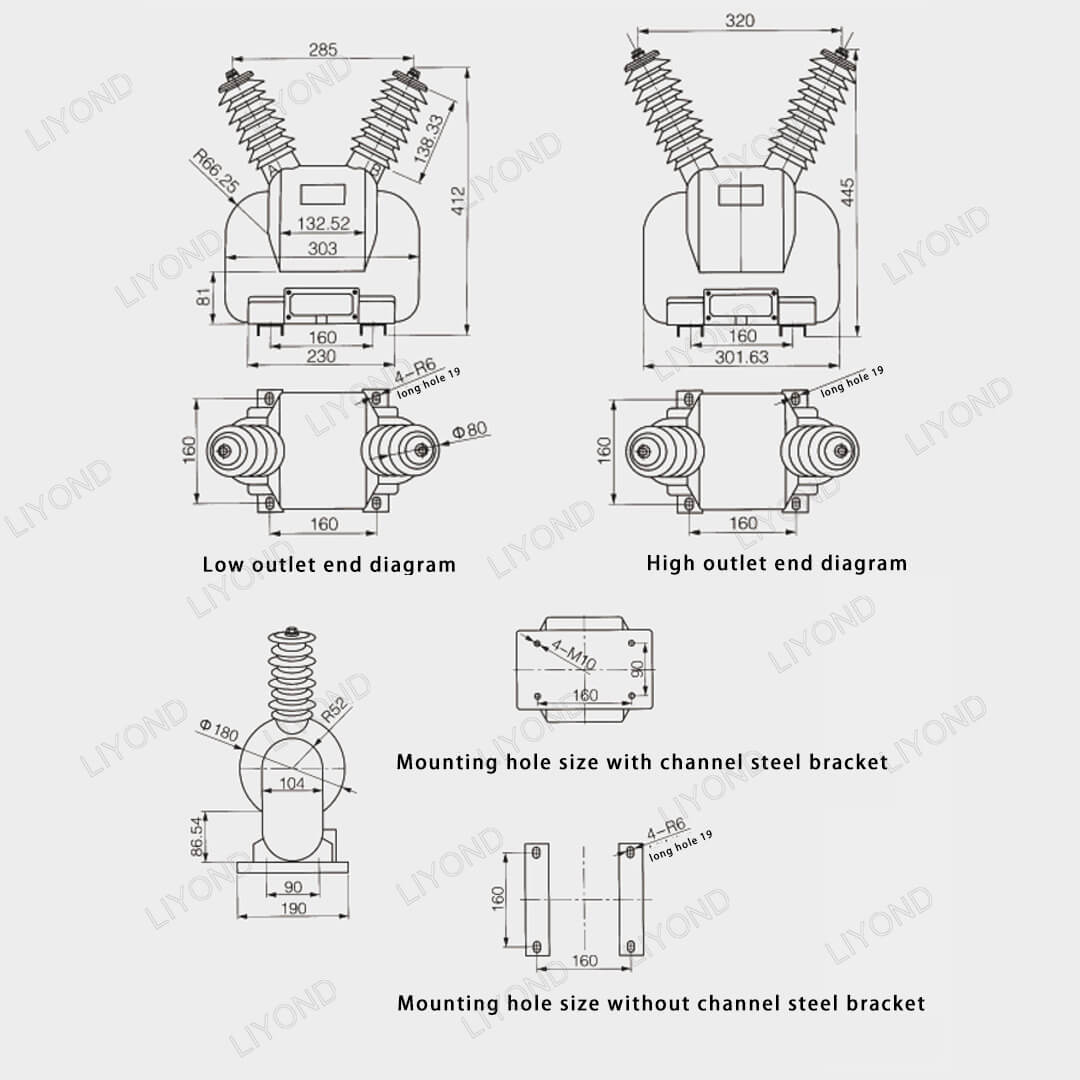

Overall dimension drawing

voltage transformer JDZW-10R drawing

Wiring diagram

JDZW-10R wiring diagram



1. The altitude does not exceed 3000 meters;
2. The ambient temperature is not higher than +40℃ and not lower than -5℃;
3. The relative humidity of the surrounding air is not more than 65% (20℃);
4. Meet the pollution level II;
5. No corrosive gas in the installation site
