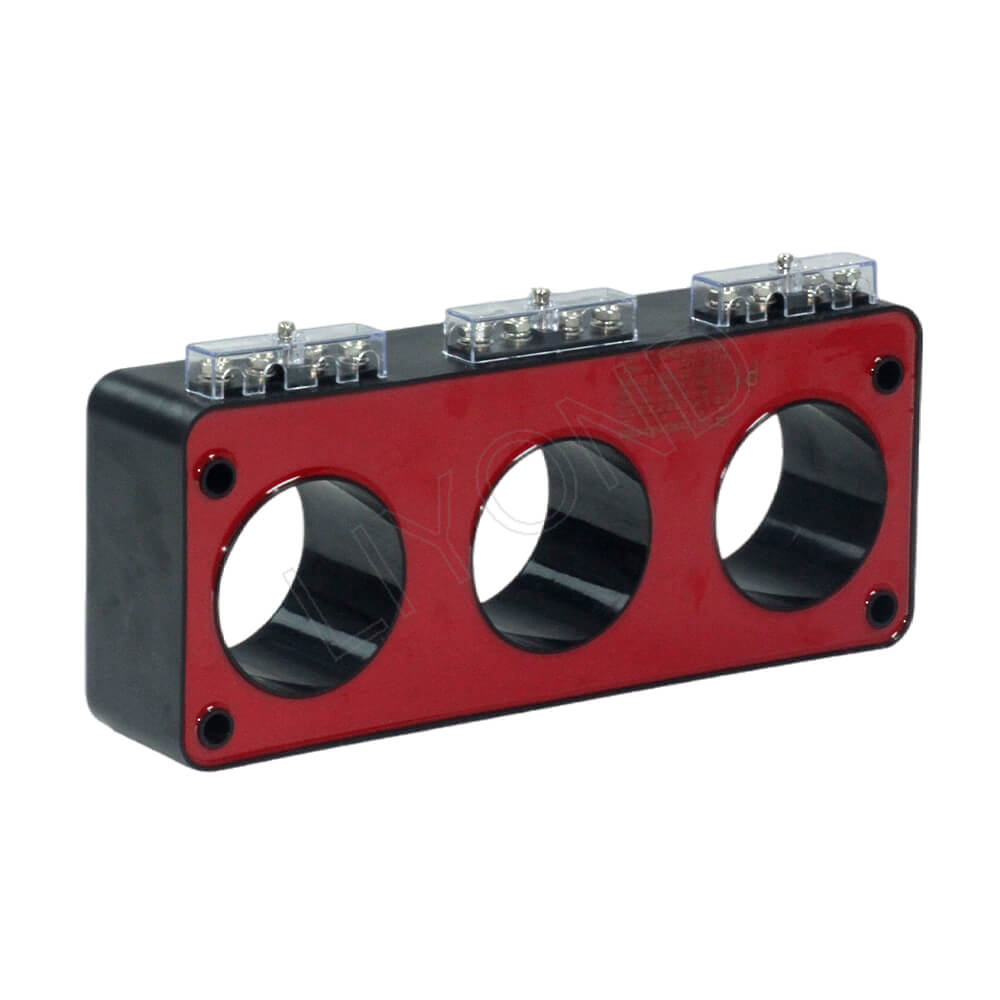

LSY3-10/107 10kV Three-phase Integrated Current Transformer

Model: LSY3-10/107

Description

The LSY three-phase integrated current transformer is suitable for installation on the three-phase bushings of the ring network switch cabinet and the switch on the main column. It is used for the measurement and protection of three-phase current and zero-sequence current. It can also be used for multi-cable circuits. Measurement and protection of zero sequence current.
  • General
  • Technical data

The LSY three-phase integrated current transformer is suitable for installation on the three-phase bushings of the ring network switch cabinet and the switch on the main column. It is used for the measurement and protection of three-phase current and zero-sequence current. It can also be used for multi-cable circuits. Measurement and protection of zero sequence current.

The core and secondary winding of this series of zero-sequence current transformers are vacuum-cast with high-quality epoxy resin in a flame-retardant plastic shell, which is moisture-proof, has stable performance and requires no maintenance.

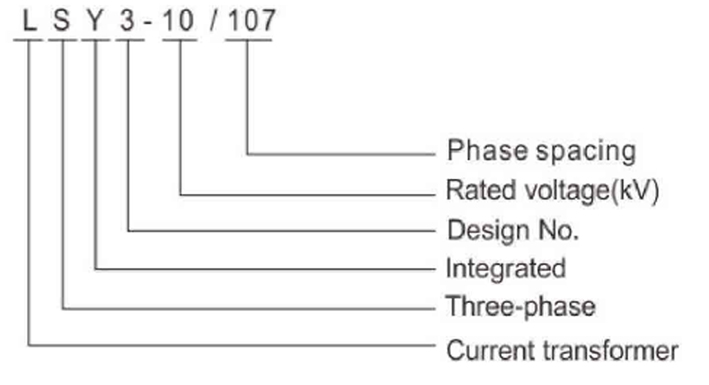

Model Meaning

LSY3-10/107 CT model meaning



Technical data
Type Rated current ratio (A) Single coil rated secondary output (VA) Double coil rated secondary output (VA)
0.2S 0.2 0.5 10P10 0.5 10P10
LSY3-10/107 75/5 / / 1 / 1 /
100/5 / / 2.5 / 1 /
150/5 / / 2.5 2.5 1.5 /
200/5 / 2.5 2.5 5 2.5 5
300/5 2.5 2.5 5 5 2.5 5
400/5 5 5 5 7.5 5 7.5
500/5 5 5 10 10 5 10
600/5 5 10 10 10 5 10
800/5 10 10 10 10 5 10

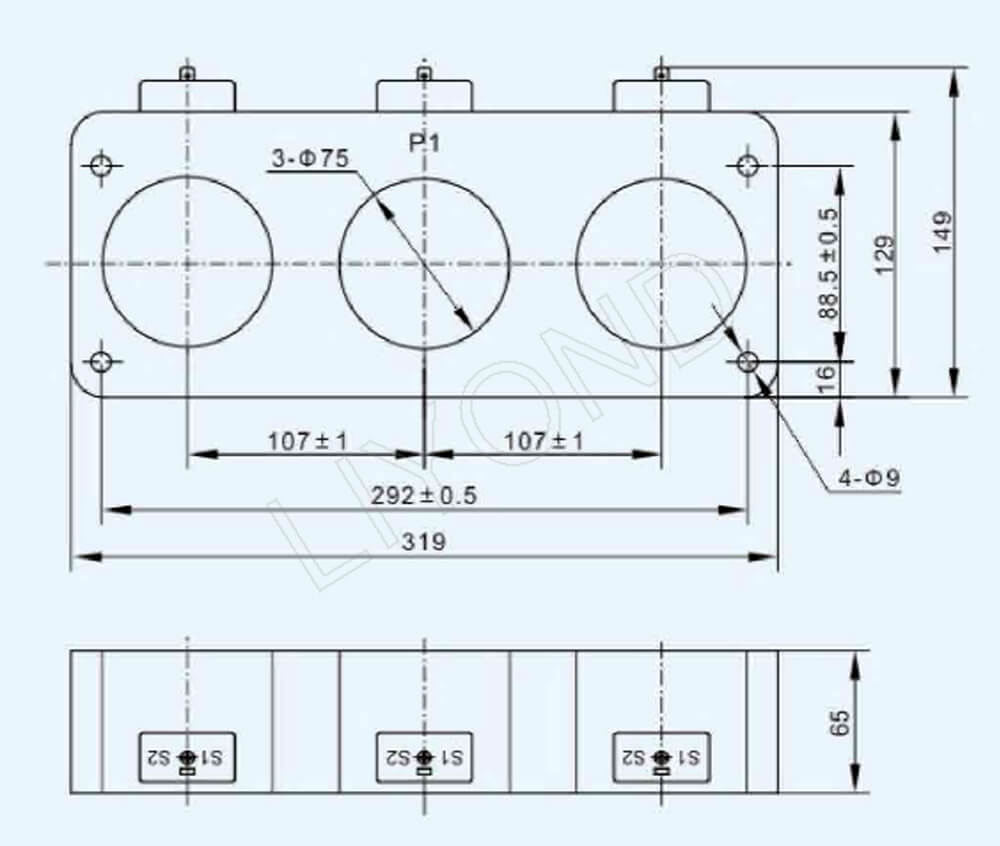

Overall dimension drawing

LSY3-10-107 ct drawing
