LYC146 Switchgear Electrical Bushing 10kV 110*180*230

Model: LYC146

Description

This Switchgear Electrical Bushing 10kV 110*180*230 is designed for use in switchgear. It features excellent electrical insulation, mechanical strength, and environmental resistance. The bushing is easy to install and maintain.
  • General Description
  • Drawing

Our Switchgear Electrical Bushing 10kV 110*180*230 is designed for use in switchgear applications. It provides exceptional electrical insulation and mechanical strength, making it ideal for medium to high voltage systems. The bushing is made from high-quality epoxy resin materials, ensuring long-lasting performance and reliability under demanding operating conditions.

Applications:

  • Switchgear: Ideal for use in indoor and outdoor switchgear for electrical power distribution.
  • Transformers: Suitable for transformers in substations and power plants.
  • Circuit Breakers: Can be used in high-voltage circuit breakers for reliable operation.
  • Other High Voltage Equipment: Used in various high-voltage electrical systems requiring excellent insulation and mechanical support.

Benefits:

  • Superior Insulation: Guarantees high voltage insulation and stability under pressure.
  • Low Maintenance: Robust construction ensures a longer lifespan with fewer maintenance requirements.
  • Safety: Protects electrical systems and reduces the risk of malfunctions.
  • Easy Installation: Designed for hassle-free installation and quick integration into your systems.
  • Cost-Effective: A durable solution that offers significant cost savings over the long term.

Working conditions

1. Altitude: ≤1000m;
2.Ambient temperature at -30℃ to +40℃, the daily average temperature should not more than 30℃.
3.The daily average of relative humidity is less than 95%, the average monthly is less than 90%;
4.Working environment should be without steam, gas, chemical corrosive deposition, salt fog, dust, dirt and other dangerous explosive media, which will severely impact on insulation and conductivity of products ;
5.Working environment should not be regular vibration or serious bumps

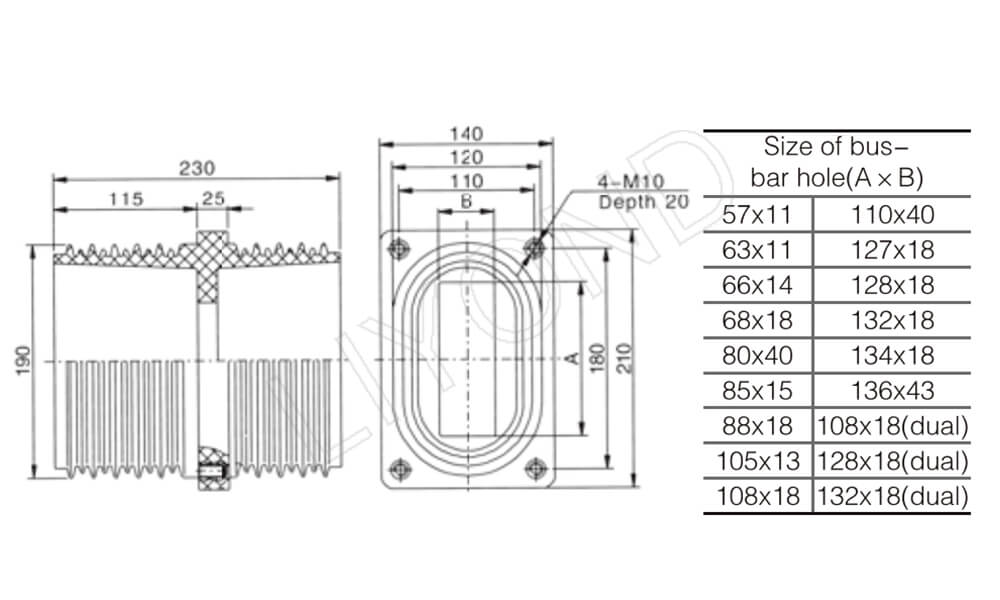

Dimensions for reference

LYC146 bushing drawing

Why Choose Us:
Quality Assurance: Our products are manufactured to the highest standards, ensuring reliability and performance.
Customer Support: We offer excellent customer service and technical support to assist you with your specific needs.
Competitive Pricing: We provide high-quality products at competitive prices, ensuring value for your investment.
