LYC186 Switchgear Cable Entry Bushing 190*200*240 for Medium Voltage Equipment

Model: LYC186

Description

Our 12kV High Voltage Epoxy Resin Bushing is designed for use in switchgear applications. It provides exceptional electrical insulation and mechanical strength, making it ideal for medium to high voltage systems. The bushing is made from high-quality epoxy resin materials, ensuring long-lasting performance and reliability under demanding operating conditions.
  • General Description
  • Drawing

Product Overview:

Our 12kV High Voltage Epoxy Resin Bushing is designed for use in switchgear applications. It provides exceptional electrical insulation and mechanical strength, making it ideal for medium to high voltage systems. The bushing is made from high-quality epoxy resin materials, ensuring long-lasting performance and reliability under demanding operating conditions.

Applications:

  • Switchgear: Ideal for use in indoor and outdoor switchgear for electrical power distribution.
  • Transformers: Suitable for transformers in substations and power plants.
  • Circuit Breakers: Can be used in high-voltage circuit breakers for reliable operation.
  • Other High Voltage Equipment: Used in various high-voltage electrical systems requiring excellent insulation and mechanical support.

Advantages:

  • High Performance: Offers superior performance and reliability under high electrical stress.
  • Durability: Designed for a long service life with minimal maintenance.
  • Safety: Provides high safety standards to protect electrical systems from failures or malfunctions.
  • Easy Installation: Compact design allows for quick and easy installation in various switchgear configurations.
  • Cost-effective: Long lifespan and minimal maintenance requirements reduce long-term operational costs.

Working conditions

1. Altitude: ≤1000m;
2.Ambient temperature at -30℃ to +40℃, the daily average temperature should not more than 30℃.
3.The daily average of relative humidity is less than 95%, the average monthly is less than 90%;
4.Working environment should be without steam, gas, chemical corrosive deposition, salt fog, dust, dirt and other dangerous explosive media, which will severely impact on insulation and conductivity of products ;
5.Working environment should not be regular vibration or serious bumps

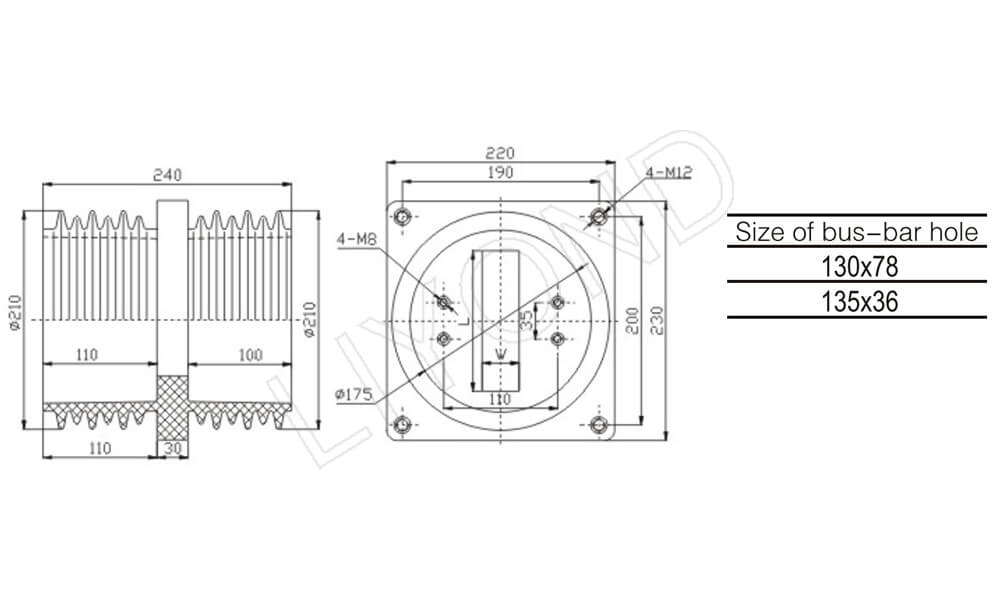

Dimensions for reference

LYC186 bushing drawing
