VSG-40.5KV High Voltage Withdrawable Indoor Floor Mounted Circuit Breaker

Model: VSG-40.5

Description

VSG-40.5 series vacuum circuit breaker is a new type of three-phase50Hz according to the unique design concept and combined with the market demand and development, the rated voltage of indoor switchgear40.5kV, it can be provided to industrial and mining enterprises, powerplant and substation as the control and protection of electrical equipment,and is suitable for frequent operation.

Outstanding Features Make You Stand Out

We play extreme caution to quality and utmost attention to detail, which makes our products so perfect.

  • administration.icon02
    Modularization of Functional Unit

    The main circuit unit and running product are coherent in interchangeability.

  • administration.icon02
    Strong Versatility

    The operating mechanism can be separated from the whole circuit breaker for convenient and easy maintenance and fix.

  • administration.icon02
    Low Maintenance

    No need of adjustment of driving unit; long-acting lubricating, reliable corrosion resistance, and high mechanical stability make low maintenance possible.

  • administration.icon02
    Long-acting Lubricating

    We apply German lubricating grease boasting lower starting torsion, stronger anti-aging and oxidation resistance.

  • administration.icon02
    Strong Corrosion Resistance

    Utilizing zinc-nickel alloy plating line with a German process to make sure our corrosion resistance is 5 to 7 times stronger than ordinary zinc-plating process.

  • administration.icon02
    Strong Expandability

    This product can easily realize diverse arrangements and combinations to meet functions like expandability and control.

  • Product Detail
  • Technical Parameters
  • Technical Drawings

VSG-40.5 series vacuum circuit breaker is a new type of three-phase 50Hz according to the unique design concept and combined with the market demand and development, the rated voltage of indoor switchgear40.5kV, it can be provided to industrial and mining enterprises, powerplant and substation as the control and protection of electrical equipment,and is suitable for frequent operation.

Applying Ambient Conditions:
1. Ambient temperature: -25℃一+40℃
2. Relative humidity: the average humidity of a day should be no mare than 95%; the average humidity of a month should be no more than 90 %.
3. Saturated vapor pressure: the average pressure of a day should be no more than 2. 2kPa, the average humidity of a month should be no more than 1.8kPa.
4. Earthquake intensity: not exceed 8 degrees.
5. Height above sea level: ≤1000m(not including special requirements)
6. Environmental conditions: It should be used in the places without fire, explosion, serious filth, chemical erosion and violent  ration.

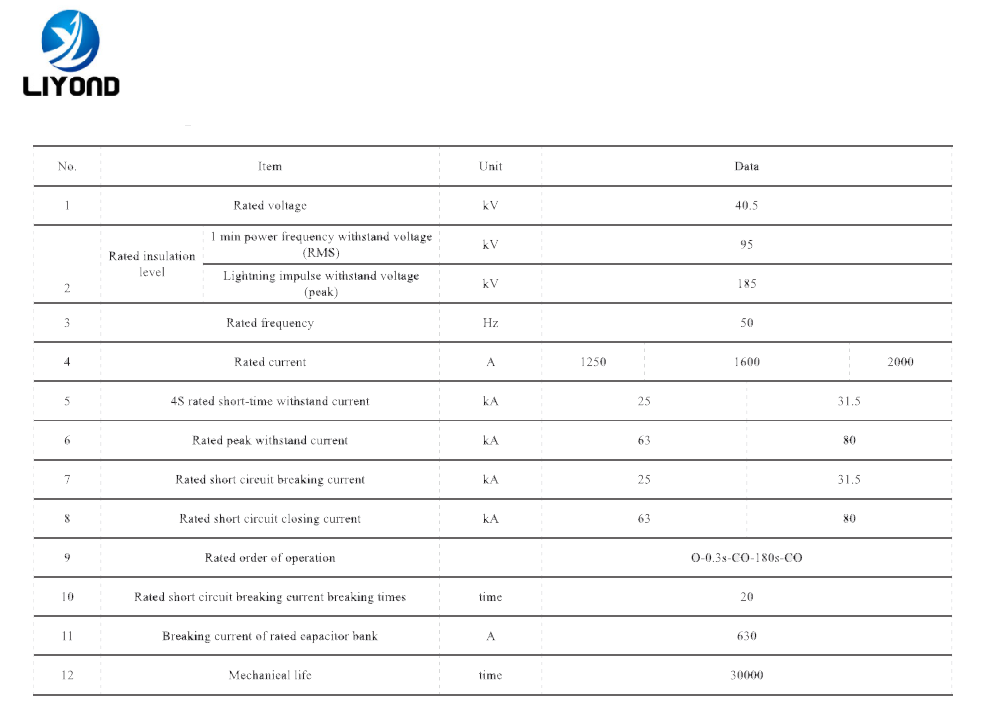

No. Item Unit Data
1 Rated voltage KV 40.5
2 1min rated short-duration power frequency withstand voltage KV 95
3 Lightning impulse withstand voltage KV 185
4 Rated frequency Hz 50/60
5 Rated current A 630/1250/1600/2000/2500
6 Rated short-circuit breaking current KA 20 25 31.5
7 Rated short-circuit making current (peak value) KA 50 63 80
8 Rated short-time withstand current KA 20 25 31.5
9 Rated peak withstand current KA 50 63 80
10 Rated short-time withstand current duration S 4
11 Rated operating sequence 0-0.3s-CO- 180s-CO
12 Rated short-circuit current breaking times Times 30
13 Mechanical Life Times 10000

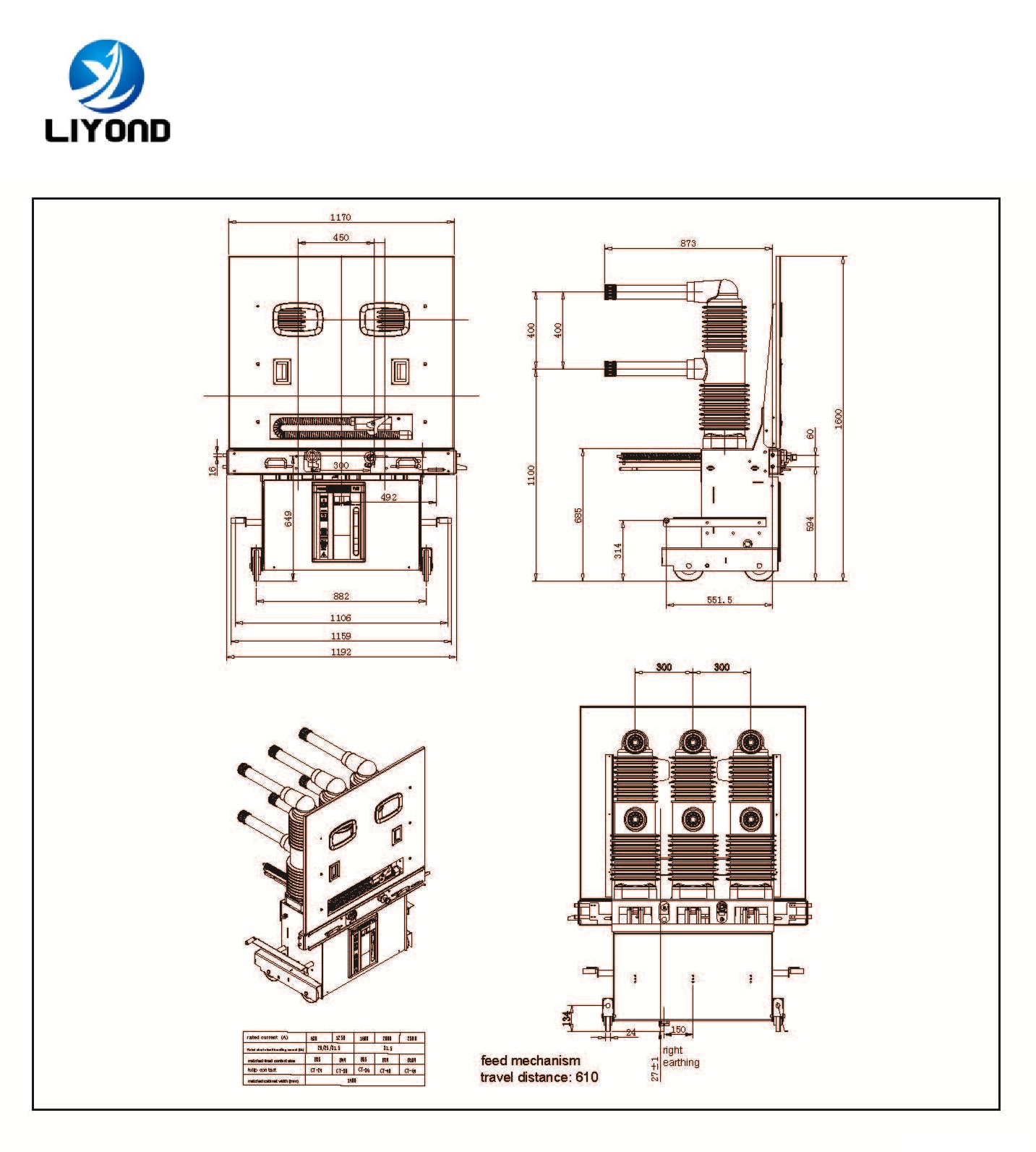

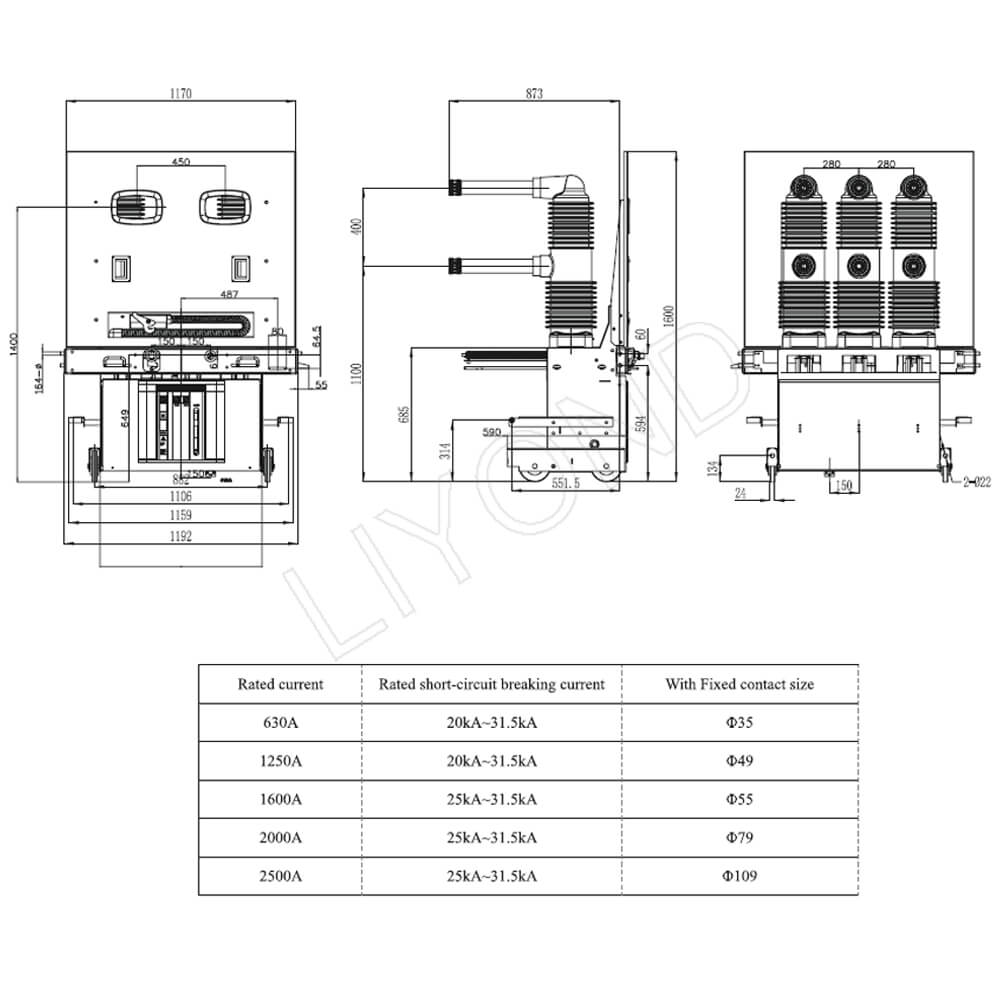

VSG-40.5 VCB Drawing
