Medium Voltage Skid
Liyond’s medium voltage skid (MV skid) is a pre-assembled, factory-tested modular power distribution unit, combining advanced power conversion systems (PCS), a power transformer, and MV switchgear on a robust base. Designed to seamlessly convert low-voltage AC power from the PCS into medium-voltage AC power, these MV skids are widely deployed in integrated energy storage systems to ensure reliable grid integration. By integrating these core electrical assemblies into a single compact footprint, our inverter/PCS skids drastically reduce on-site installation complexity, accelerate project deployment, and deliver a cost-effective, high-efficiency power distribution solution.
Explore our product configurations below or contact our engineering team for a tailored MV skid solution.
Liyond MV Skid Solutions
5MVA MV Skid Integrated Power Conversion for Energy Storage
5MVA Transformer RMU Switchgear 2 PCS Units IEC 61850 Protocol

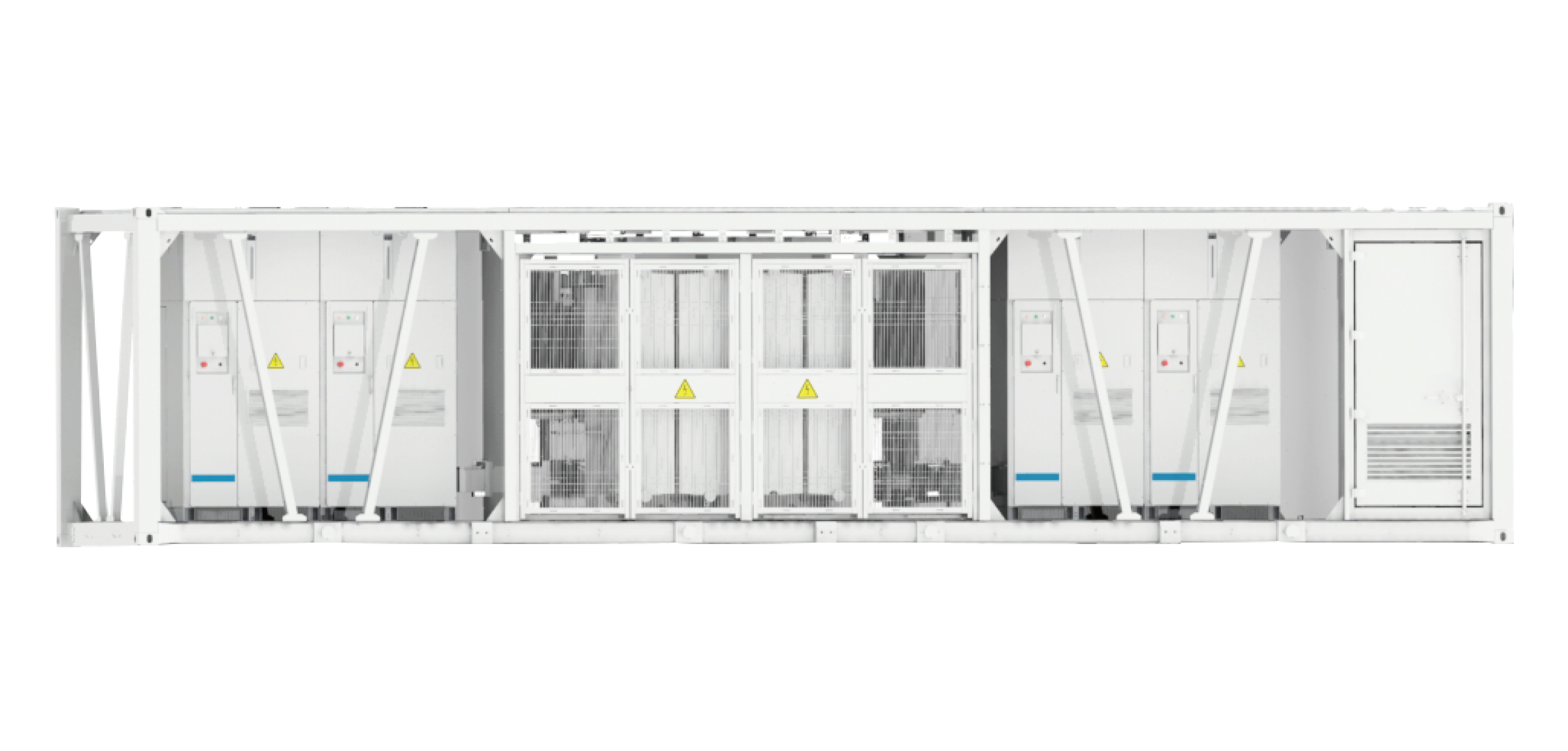

10MVA MV Skid Dual Modular Power Conversion System for Energy Storage
10MVA Transformer RMU Switchgear 4 PCS Units IEC 61850 Protocol
Modular Design of Integrated MV Skid Solutions
To understand how our integrated MV skid solutions deliver high-efficiency power distribution and seamless grid compliance for utility scale projects, we can break down the internal architecture and modular layout:
Functions as the core bi-directional conversion unit, seamlessly transforming low-voltage AC power into medium-voltage AC power.
Steps up the voltage output to match grid requirements, ensuring reliable performance and stable power transmission.
Connected to the transformer’s secondary side, it provides essential circuit protection, isolation, and medium-voltage distribution control and busbar convergence for the entire grid-tied system.
Equipped with a multi-layered protection system—including DC/AC input-output safeguards, surge protection devices (SPDs), insulation monitoring, and comprehensive transformer safety monitors—to ensure secure, reliable, and fault-tolerant operation in harsh utility environments.
Mounts all core electrical equipment onto a heavy-duty, weather-resistant skid base, creating a factory-tested, plug-and-play unit that drastically reduces on-site construction complexity and execution risks.
Why Choose Liyond's MV Skid Solutions?
Backed by rigorous factory testing and robust industrial design, our MV skids minimize fault risks and guarantee long-term, stable operation under harsh environmental conditions.
By consolidating multi-component design, manufacturing, and testing into a pre-assembled modular unit, we significantly mitigate on-site coordination complexities and accelerate project timelines.
By delivering a fully pre-assembled, factory-tested modular unit, we eliminate the need for complex, labor-intensive on-site assembly and heavy civil construction—drastically reducing site labor overhead, construction time, and overall project investment risks.
From tailored electrical parameters and spatial configurations to responsive engineering backup, we provide end-to-end partnership to ensure seamless project execution.
Leave us a message about your requirements or projects. Our expert will respond as soon as possible.
