5MVA MV Skid Integrated Power Conversion System for Energy Storage

Liyond 5MVA MV Skid Integrated Power Conversion System for Energy Storage
Model: LY-PCS5000-T

The Liyond 5MVA MV skid compact is a pre-assembled, highly integrated solution engineered for high-performance grid interconnection, serving as the ideal bridge for large-scale battery energy storage systems (BESS).



Housed within a standard 20-foot high cube container footprint, the system integrates a 5000kVA transformer, RMU switchgear, 2 PCS units, and advanced protection devices. Featuring IEC 61850 protocol compliance and seamless EMS integration, it ensures efficient grid interaction.



Specific configurations can be tailored to your project.

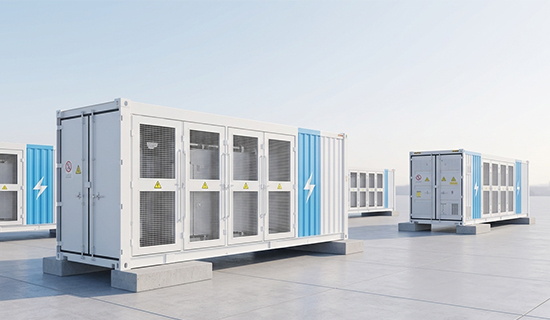

mv skid solutions and cases

5MVA MV Skid Features

Grid Support & Peak Capacity

Empowers the grid with robust peak shaving, frequency regulation, and black start capabilities.

Smart O&M & Protocol Compliance

Features IEC61850 protocol compliance and standardized modeling, enabling plug-and-play integration with site-level EMS.

Integrated & Pre-assembled

Features an all-in-one modular design highly integrating protection, measurement, and control, factory-preassembled to minimize on-site installation time and labor costs.

High Efficiency & Grid Reliability

Adopts advanced ANPC three-level topology delivering over 99% peak conversion efficiency, supporting PQ, VF, and VSG modes alongside robust high/low-voltage ride-through and grid adaptability.

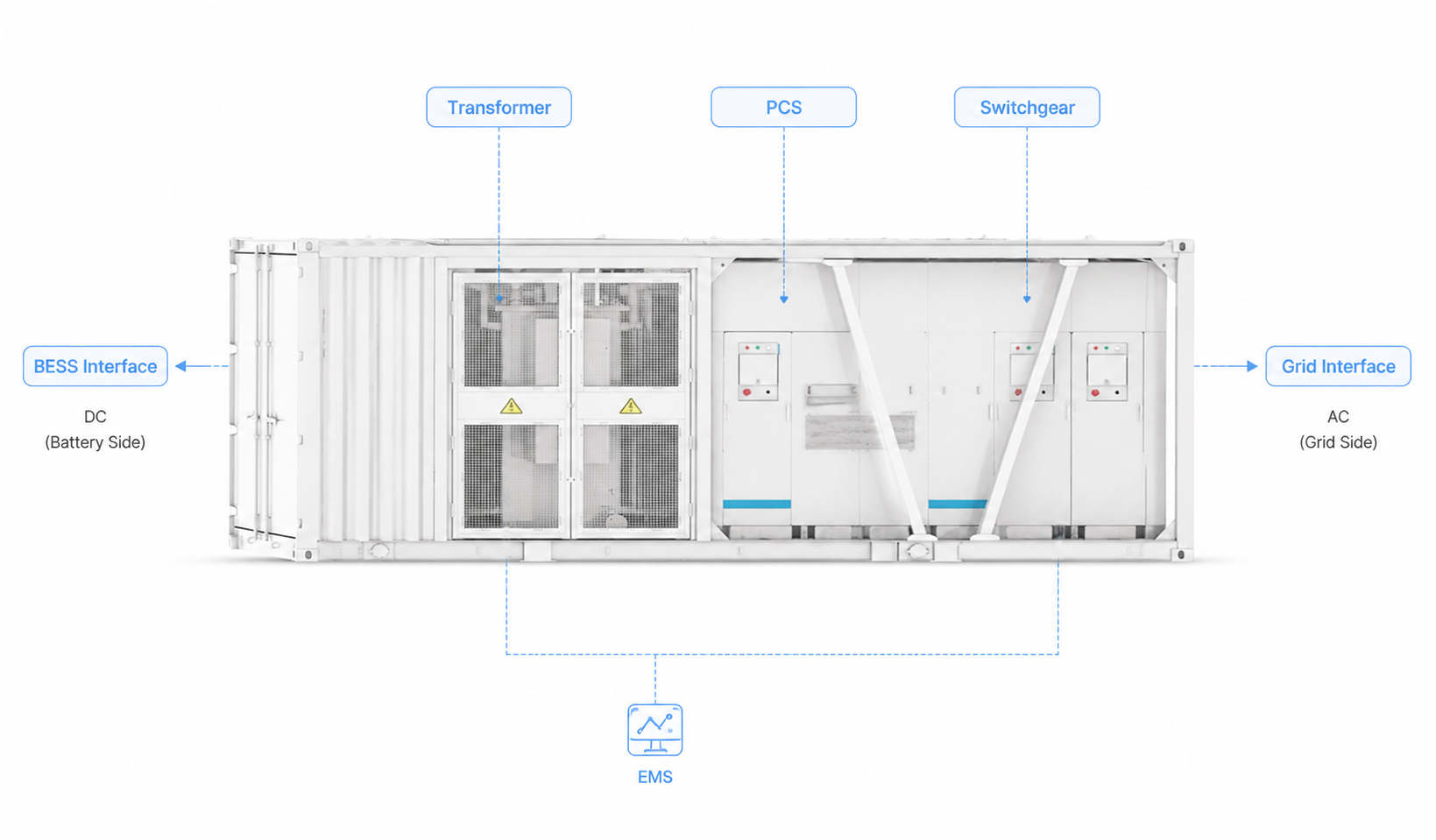

5MVA MV Skid Architecture

5MVA MV Skid Architecture

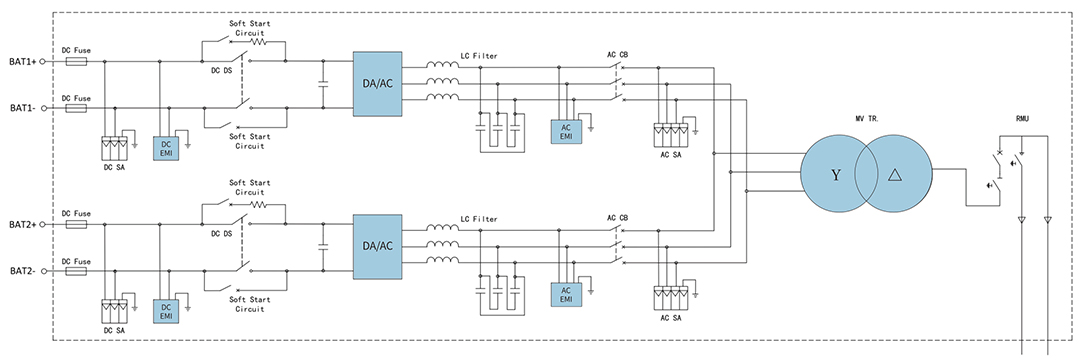

5MVA MV Skid Electrical Diagram

Liyond 5MVA MV Skid Electrical Diagram

5MVA MV Skid Specifications

Transformer
Rated power5000 kVA
TypeOil immersed transformer
Connection groupDy11
IP Rating / Degree of ProtectionIP54
Cooling methodONAN
Temperature rise limit60K (Top oil temperature) 65K (winding) @40°C (customizable)
Transformer oilMineral oil
Medium Voltage (MV) Operating Range6.6 ~ 33 kV ±5%
Rated frequency50 / 60 Hz
Converter EfficiencyT2
Winding materialAluminium / Copper
Altitude≤1000m (Customization is available for sizes greater than 1000m)
Switching equipment
TypeRMU, CCV
Operating current630 A
Working Voltage12 / 24 / 36 kV
Enclosure IP RatingIP4X
Rated short-circuit current20 kA/3s
Overcurrent protection currentA FL 20kA 1s
PCS*2
DC input voltage range1050 ~ 1500 V
Maximum DC input current2620 A
DC voltage ripple< 2%
DC current ripple< 3%
Low voltage rated working voltage690 V
Low voltage operating voltage range621 ~ 759 V
Energy efficiency≥ 99%
Maximum AC output current2302 A
Total harmonic distortion rate< 3%
Reactive power compensationFour quadrant operation
Rated output power2500 kVA
Maximum AC power2750 kVA
Power factor range> 0.99
Rated frequency50 / 60 Hz
Working frequency range45~55 / 55~65 Hz
Wiring methodThree-phase three wire system
Protective device
DC input protectionInverter with built-in isolation switch and fuse
Communication output protectionInverter with built-in electric circuit breaker
DC overvoltage protectionClass II surge protector
Communication overvoltage protectionClass II surge protector
Ground fault protectionDC side insulation monitoring
Transformer protectionPressure, temperature, gas, and oil level reduction protection (with PT100 sensor)
Communication interface
Communication Medium/InterfaceCAN / RS485 / RJ45 / Optical fiber
Communication protocolCAN / Modbus / IEC60870-104 / IEC61850
Number of Converters/InvertersStandard configuration: 1 unit
UPS1kVA (15min / 1h / 2h)
General Part
SizeW 6058 × H 2896 × D 2438 mm (20ft High Cube Container)
Weight24 t
Degree of protection (IP)IP54
Operating Temperature-35 ~ 60°C (>45°C Derating)
Storage temperature-35 ~ 70°C
Maximum altitude5000m (≥3000m Derating)
Ambient humidity0 ~ 100%, No condensation
Auxiliary power consumption12kVA Peak

FAQs of 5MVA MV Skid Compact Solution

Liyond MV skid integrated system products
What is the system capability and grid integration rating of this 5MVA MV skid?

The 5MVA MV skid is an integrated turnkey solution featuring a step-up transformer with rated capacity of 5,000kVA (max. AC power of 5,500 kVA) and a medium-voltage grid range of 6.6–33kV (±5%) at 50/60Hz.

What are the voltage and current ratings of the MV switchgear?

The compact skid incorporates a RMU switchgear (CCV configuration) rated for 12/24/36kV operating voltages and 630A current.

What are the core electrical specs of the integrated PCS inverter units?

The PCS inverter units adopt a dual-PCS design supporting a DC input voltage range of 1050V-1500V, and a 690V AC nominal output, delivering a rated output power of 2,500 kVA (max. 2,750 kVA) with energy efficiency≥99%.

What are the operating conditions for this 5MVA MV skid?

The compact skid is engineered for rigorous outdoor environments, supporting ambient temperatures from -35°C to 60°C (>45°C derating);

The integrated system supports up to 5,000m (≥3,000m derating), while the transformer standard limit is 1,000m (customizable for higher altitudes).

What Ingress Protection (IP) ratings are applied across the 5MVA MV skid?

The PCS inverter-transformer unit features an IP54-rated heavy-duty enclosure (including the transformer compartment) to protect against dust and water ingress in harsh outdoor environments, while the internal MV switchgear is rated IP4X for operational safety.

What are the physical dimensions and total weight of the 5MVA Compact MV skid?

The compact integrated system is built into a standard 20-foot high cube container measuring 6,058 × 2,438 × 2,896 mm with a total weight of approximately 24 tons.

What are the typical applications and deployment scenarios for this compact MV skid?

The 5MVA compact MV skid is engineered for large-scale renewable generation, utility-grade grid tie-ins, commercial and industrial (C&I) microgrids, and regional power distribution upgrades, supporting both single-unit deployment and flexible modular paralleling for multi-megawatt power projects.

Why choose Liyond's 5MVA MV skid for your power distribution projects?

Liyond delivers an all-in-one, factory-preassembled turnkey solution that efficiently reduces project time and labor costs.

As a trusted manufacturer, we also offer flexible project-tailored configurations and standalone sourcing options for transformers, MV switchgear, and accessories.
