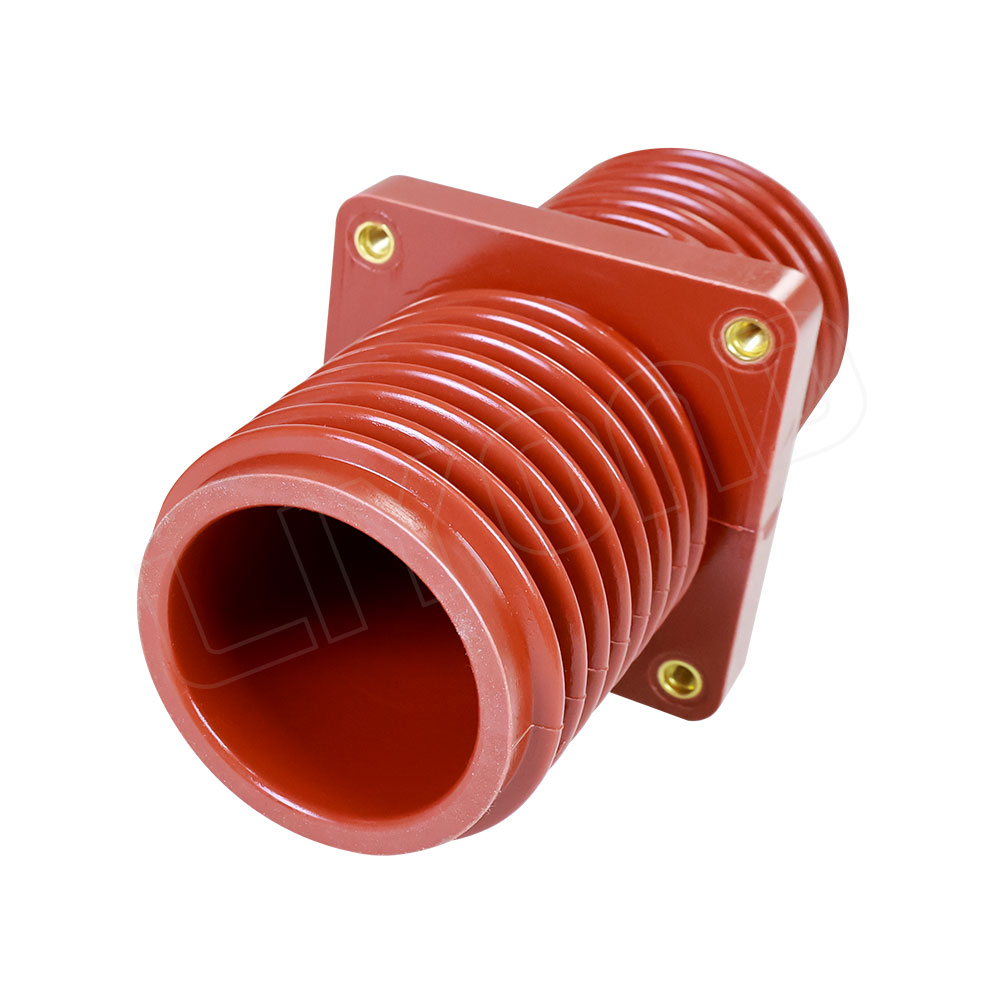

LYC143 10kV Epoxy Spout Busbar Bushing For Medium Voltage Switchgear

Model: LYC143

Description

The medium voltage wall bushing is suitable for the power distribution equipment and high-voltage electrical appliances of power plants and substations with power frequency AC voltage of 35kV and below, and is used for insulation and support of conductive parts passing through walls or other grounding objects.
  • General Description
  • Features
  • Working conditions
  • Drawing

Indoor high-voltage through wall bushing is formed by epoxy resin with APG pressure gelating technies. It is mainly used in complete sets of equipment with rated voltages of 12KV, 24KV, 40.5KV and used for insulation isolation and excessive connection. The bushing is resistant to dirt and moisture and requires no special maintenance. It is only necessary to clean the surface regularly. The busbar passes through the hole during installation.

1. High quality epoxy resin material
2. Advanced APG technology
3. Stable performance
4. Safe insulation
5. Anti-fouling and humidity resistance
6. Long service life

1. Altitude: ≤1000m;
2.Ambient temperature at -30℃ to +40℃, the daily average temperature should not more than 30℃.
3.The daily average of relative humidity is less than 95%, the average monthly is less than 90%;
4.Working environment should be without steam, gas, chemical corrosive deposition, salt fog, dust, dirt and other dangerous explosive media, which will severely impact on insulation and conductivity of products ;
5.Working environment should not be regular vibration or serious bumps

bushing drawing LYC143
