Outstanding Features Make You Stand Out
We play extreme caution to quality and utmost attention to detail, which makes our products so perfect.
We play extreme caution to quality and utmost attention to detail, which makes our products so perfect.
The main circuit unit and running product are coherent in interchangeability.

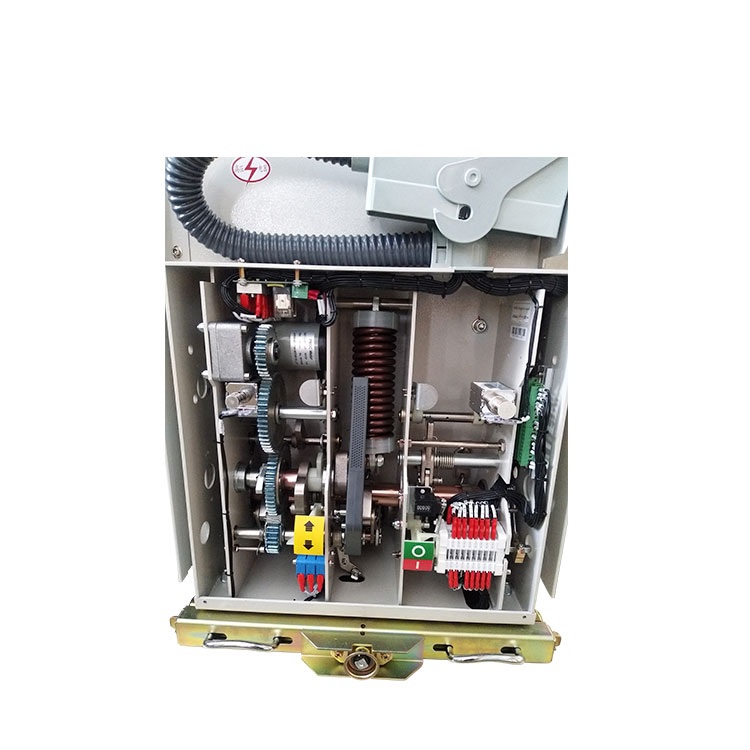

The operating mechanism can be separated from the whole circuit breaker for convenient and easy maintenance and fix.
No need of adjustment of driving unit; long-acting lubricating, reliable corrosion resistance, and high mechanical stability make low maintenance possible.
We apply German lubricating grease boasting lower starting torsion, stronger anti-aging and oxidation resistance.
Utilizing zinc-nickel alloy plating line with a German process to make sure our corrosion resistance is 5 to 7 times stronger than ordinary zinc-plating process.
This product can easily realize diverse arrangements and combinations to meet functions like expandability and control.
The circuit breaker has the advantages of long service life, simple maintenance, no pollution, no explosion hazard and low noise, and is suitable for the harsh working conditions such as frequency operation.
| NO. | Item | Unit | Data | |
| 1 | Rated voltage | kV | 12 | |
| 2 | Rated insulation level | 1min Power frequency withstand voltage | 42 | |
| Rated lightning impulse withstand voltage | 75 | |||
| 3 | Rated current | A | 630,1250,2000,3150 | |
| 4 | Rated short circuit breaking current | kA | 20,25,31.5,40 | |
| 5 | Rated short-circuit opening and closing current (peak) | 50,63,80,100 | ||
| 6 | Rated dynamic current (peak) | 50,63,80,100 | ||
| 7 | Rated thermal stability current (rms) | 20,25,31.5,40 | ||
| 8 | Rated short circuit current breaking times | time | 50,20 | |
| 9 | Rated thermal stability time | s | 4 | |
| 10 | Rated operating sequence | / | O-0.3S-CO-180S-CO | |
| 11 | Mechanical life | time | 10000 | |
| 12 | Rated single capacitor bank breaking current | A | 630 | |
| 13 | Rated back to back capacitor bank breaking current | 400 | ||
Equip your business with long-lasting switchgear components that respond to your needs and smoothen electrical operations at affordable costs.
Since 2011, Liyond has been dedicated to designing and manufacturing reliable and superior switchgear components, whilst providing impactful solution to customers all over the world.
