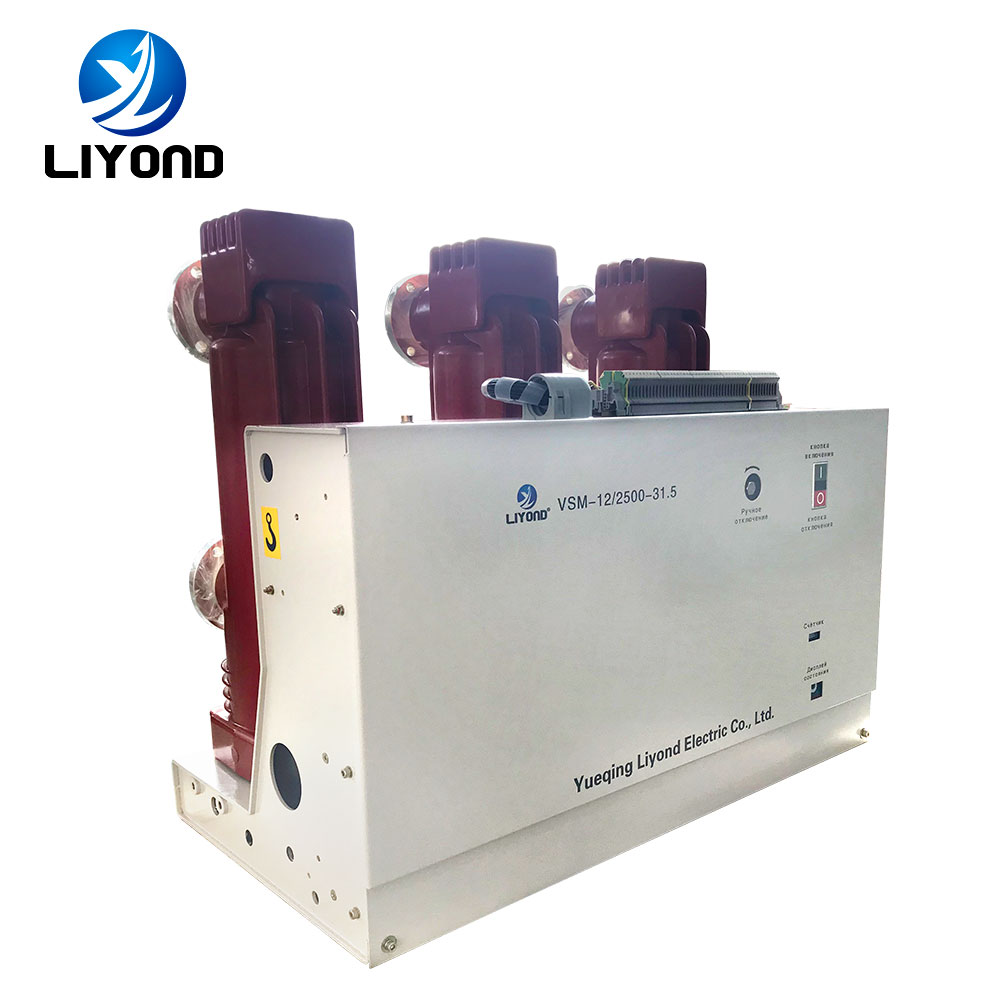

VSM-12KV fixed type (3)

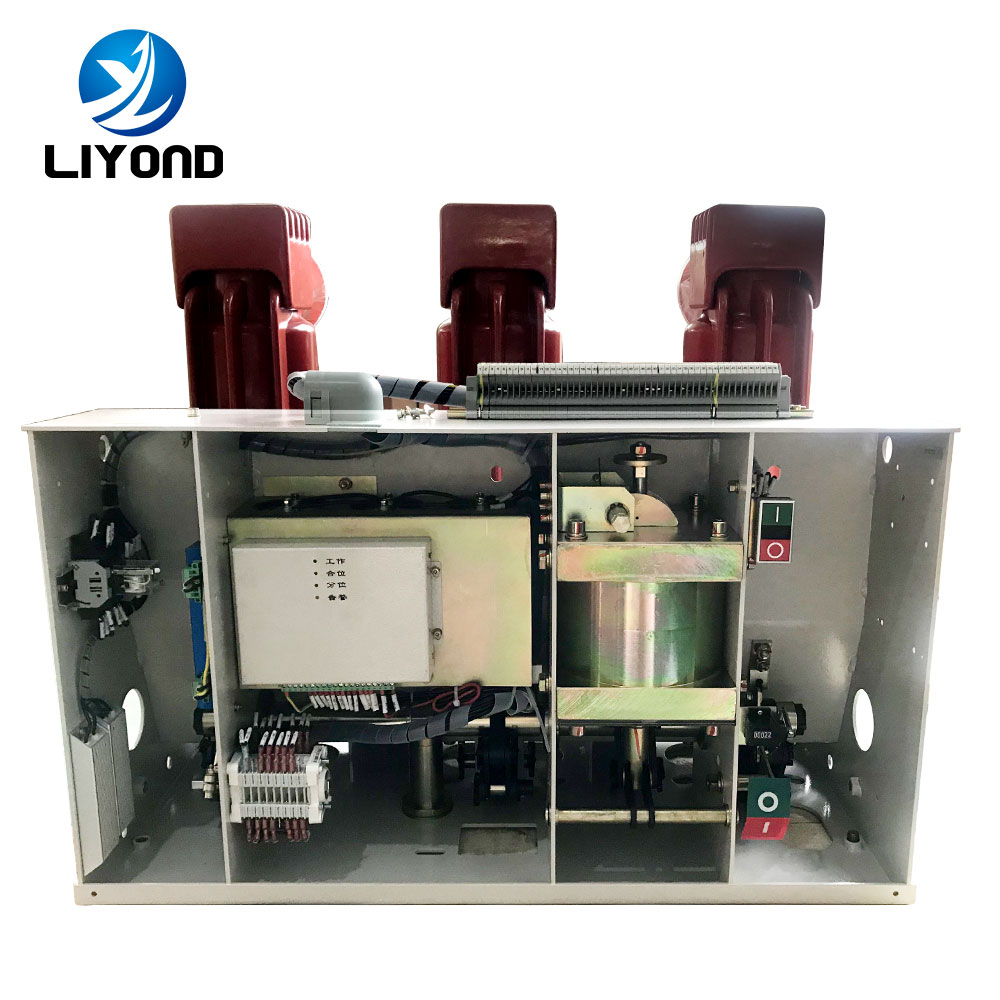

VSM-12KV fixed type (2)

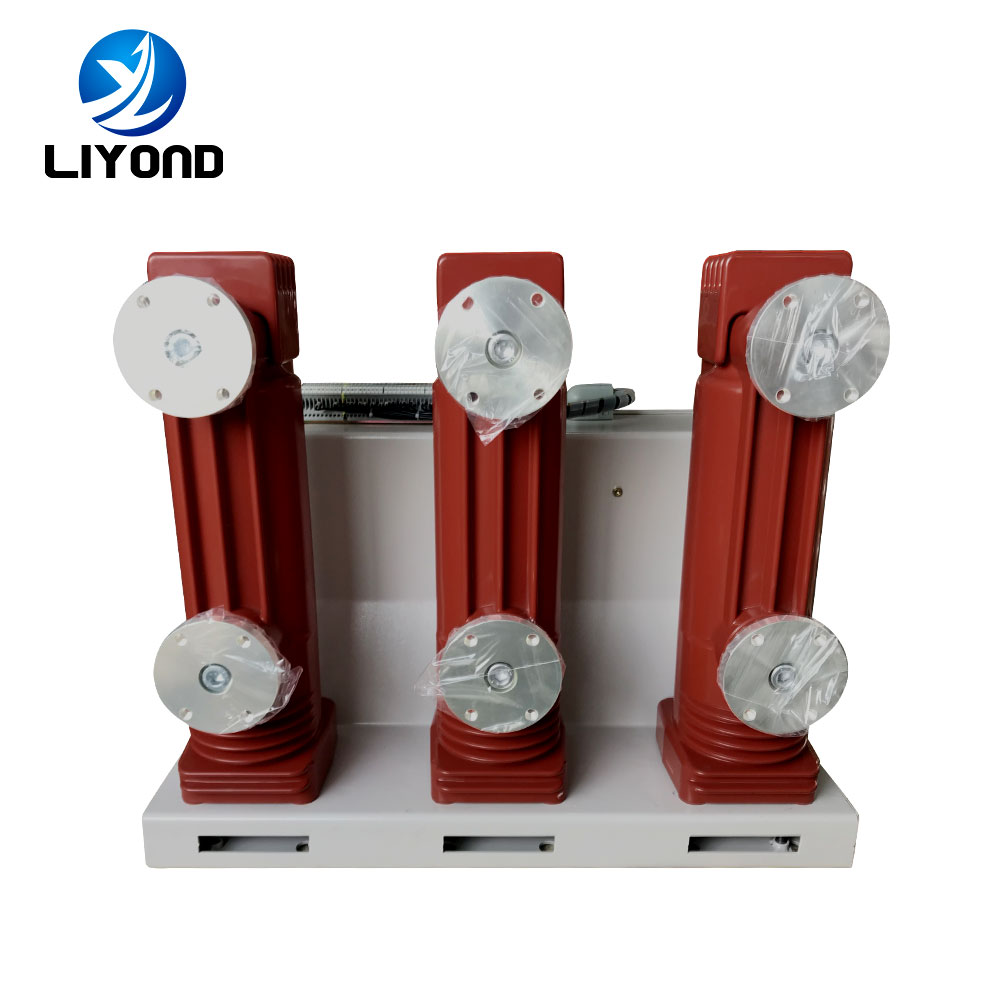

VSM-12KV fixed type (4)

VSM-12 Permanent magnet type indoor fixed type vacuum circuit breaker

Sku Number: VSM-12

Description

The permanent magnet operating mechanism and the vacuum interrupter of the HX03-12/M vacuum circuit breaker adopt front and rear arrangement. The main conductive circuit is a floor-standing structure. The upper and lower outlet seats and the vacuum interrupter are installed in a tubular insulating cylinder. Inside. The insulating cylinder is made of epoxy resin by APG process. This structure can prevent dust accumulation on the surface of the vacuum arcing chamber and prevent it from being damaged by external factors. It can ensure that the product still has good insulation performance in the humid and hot environment and serious pollution.

Outstanding Features Make You Stand Out

We play extreme caution to quality and utmost attention to detail, which makes our products so perfect.

  • administration.icon02
    Modularization of Functional Unit

    The main circuit unit and running product are coherent in interchangeability.

  • administration.icon02
    Strong Versatility

    The operating mechanism can be separated from the whole circuit breaker for convenient and easy maintenance and fix.

  • administration.icon02
    Low Maintenance

    No need of adjustment of driving unit; long-acting lubricating, reliable corrosion resistance, and high mechanical stability make low maintenance possible.

  • administration.icon02
    Long-acting Lubricating

    We apply German lubricating grease boasting lower starting torsion, stronger anti-aging and oxidation resistance.

  • administration.icon02
    Strong Corrosion Resistance

    Utilizing zinc-nickel alloy plating line with a German process to make sure our corrosion resistance is 5 to 7 times stronger than ordinary zinc-plating process.

  • administration.icon02
    Strong Expandability

    This product can easily realize diverse arrangements and combinations to meet functions like expandability and control.

  • Product Detail
  • Technical Parameters
  • Technical Drawings

The permanent magnet operating mechanism and the vacuum interrupter of the HX03-12/M vacuum circuit breaker adopt front and rear arrangement,. The main conductive circuit is a floor-standing structure. The upper and lower outlet seats and the vacuum interrupter are installed in a tubular insulating cylinder. Inside. The insulating cylinder is made of epoxy resin by APG process.This structure can prevent dust accumulation on the surface of the vacuum arcing chamber and prevent it from being damaged by external factors. It can ensure that the product still has good insulation performance in the humid and hot environment and serious pollution.

Permanent magnet vacuum circuit breaker for indoor installation, air insulation, used to open and close various of different type of power load,Applicable to the construction and renovation of power grids such as urban nets, rural nets, mines and railways, especially the products absorb advanced technology and technology at home and abroad, with intelligent, high reliability, long life, maintenance-free and other characteristics. No pollution to the surrounding environment when used and it’s a green product.

Table 1.  Technical parameters

No Item Unit Specification
1 Rated Voltage kV 12
2 Rated Current A 630 1000、1250 1600、2000、2500、3150
3 Rated short circuit breaking current kA 20 25 20 25 31.5 31.5 40
4 Rated peak withstand current kA 50 63 50 63 80 80 100
5 Rated short-time withstand current kA 20 25 20 25 31.5 31.5 40
6 Rated short circuit closing current kA 25 63 25 63 80 80 100
7 Breaking times of short circuit current  times 50 30
8 Rated operating sequence O-0.3s-CO-180s-CO,O-180s-CO-180s-CO(40kA)
9 Mechanical life times 30000(small current) 20000(heavy current)
10 Breaking times of rated current times 30000(small current) 20000(heavy current)
11 Rated lightning impulse withstand voltage (full wave) kV 75
12 Rated short-time power frequency withstand voltage kV/min 42



Table 2.Parameters of circuit breakers with capacitors

No Item Unit Specification
1 Travel of the contact mm 11±1
2 Over-travel of the contact mm 3.5±0.5
3 Closing speed m/s 0.6±0.2
4 Opening speed m/s 1.1±0.3
5 Contact closing bounce time ms ≤2,≤3(40kA)
6 Three-phase contact closing and opening synchronization ms ≤2
7 Closing time ms ≤22
8 Opening time ms ≤20
9 Energy storage loop supply voltage V 110、220
10 Energy storage loop current A ≤0.5(Before the capacitor is full),≤0.01(After the capacitor is full)
11 Energy storage time s ≤10,First charge time≥30
12 Closing control voltage V 110、220
13 Opening control voltage V 110、220
14 Closing control current A 0.2
15 Opening control current A 0.2
16 Main loop resistance μΩ ≤60(630A),≤45(1250A),≤30(2000A above)
17 Phase distance mm 210,275(40kA)

Table 3.Parameters of circuit breakers with capacitors

No Item Unit Specification
1 Travel of the contact mm 11±1
2 Over-travel of the contact mm 3.5±0.5
3 Closing speed m/s 0.6±0.2
4 Opening speed m/s 1.1±0.3
5 Contact closing bounce time ms ≤2,≤3(40kA)
6 Three-phase contact closing and opening synchronization ms ≤2
7 Closing time ms ≤75
8 Opening time ms ≤65
9 Energy storage loop supply voltage V DC220~DC240V(From DC screen)
10 Energy storage circuit closing current A 35<I<55(Small current)
11 Energy storage circuit opening current A 10<I<20
12 Energy storage circuit closing time ms ≤60
13 Energy storage circuit opening time ms ≤25
14 Closing control voltage V 110、220
15 Opening control voltage V 110、220
16 Closing control current A 0.2
17 Opening control current A 0.2
18 Main loop resistance μΩ ≤60(630A),≤45(1250A),≤30(2000A the above)
19 Phase distance mm 210,275(40kA)

VSM-12 Permanent magnet VCB Technical Drawings
