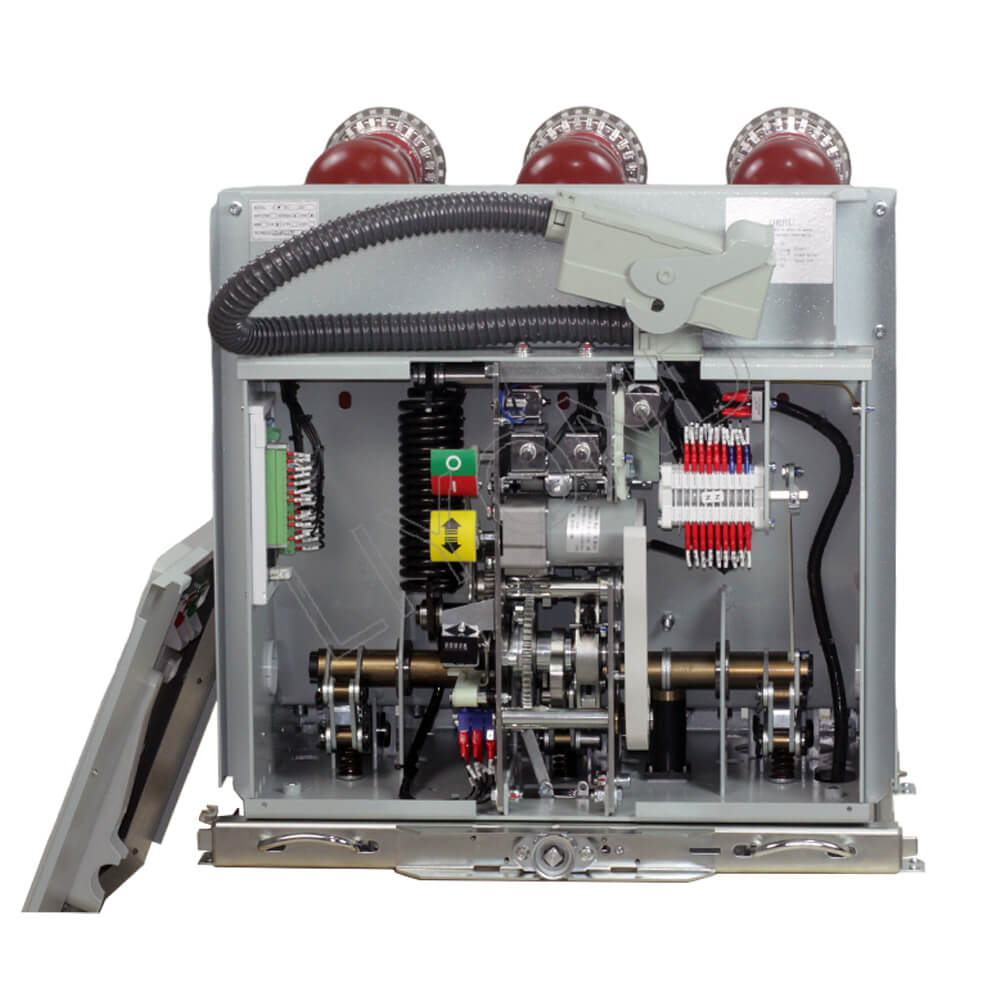

VSG-12 2000A Current Handcart Type Vacuum Circuit Breaker With Fixed Pole

Model: VSG-12/2000-210

Description

VSG-12 type Indoor high voltage vacuum circuit breaker used spring to storage energy. The operating mechanism can be operated by two ways, by manual and electromotive operation, The characteristics is according with GB1984-2003 High Voltage AC Circuit Breaker, JB3855-1996 3.6-4.5KV Indoor AC High Voltage AC Circuit Breaker and IEC standard 62271-100:200162271-100:2001 High Voltage AC Circuit Breaker
  • Product Detail
  • Technical Parameters

VSG type indoor high-voltage vacuum circuit breaker is suitable for switching various loads of different natures and frequent operations in power systems with three-phase AC 50Hz and rated voltage of 7.2kV-40.5kV. It can be used in industries, mining, enterprises, and power plants. And for the protection and control of electrical equipment in substations. It can be equipped with KYN28A and other mid-mounted handcart switch cabinets, and can also be equipped with XGN fixed switch cabinets. The VSG indoor high-voltage vacuum circuit breaker complies with the national standards GB1984 “AC High-voltage Circuit Breaker”, JB/T3855 “3.6~40.5kV Indoor AC High-voltage Vacuum Circuit Breaker” and IEC60056 “High-Voltage AC Circuit Breaker” standards.

VCB Features:

    • VSG Spring Operating Mechanism: Ensures fast and reliable switching operations with minimal maintenance.
    • Handcart Design: Provides flexibility and ease of installation, maintenance, and replacement.
    • Embedded Pole Technology: Enhances dielectric strength and reliability, reducing maintenance needs and increasing lifespan.
    • Compact and Robust: Designed for space-saving installations without compromising performance and safety.

Applying Ambient Conditions:

1.Ambient temperature -25℃– +40℃
2.The height above sea level: ≤1000 m
3.Relative humidity: the average humidity of a day should be no more than 95%; the average humidity of a month should be no more than 90%.
4.Saturated vapor pressure: the average pressure of a day should be no mare than 2.2kPa; the average pressure of a month should be no more than1.8KPa.
5.Earthquake intensity: not exceed 8 degrees
6.It should be Installed in the places without fire, explosion, serious filth, and chemical erosion and violent vibration.

No.
Item
Unit
Data
1
Rated voltage
kV
12
2
Rated frequency
Hz
50
3
Rated insulation level
1min power frequency withstand voltage
kV
42
Rated lightning impulse withstand voltage
kV
75
4
Rated current
A
630/1000/1250/1600/2000/2500/3150/4000
5
Rated short circuit breaking current
Rated short-time withstand current (virtual value)
kA

20/25/31.5/40/50
6
Rated short circuit making current (peak value)
Rated dynamic current(peak value)
kA

50/63/80/100/125
7
Rated short-circuit breaking current breaking time
times
30, 50
8
Rated thermal stability time
s
4
9
Rated operation sequence
O-0. 3s-CO-180s-CO
10
Mechanical life
 times
30000
11
Rated breaking current of single capacitor bank
A
630
12
The breaking current of single rated capacitance bank
A
400
13
The breaking current of rated back to back capacitance bank
s
4

Overall dimensions
